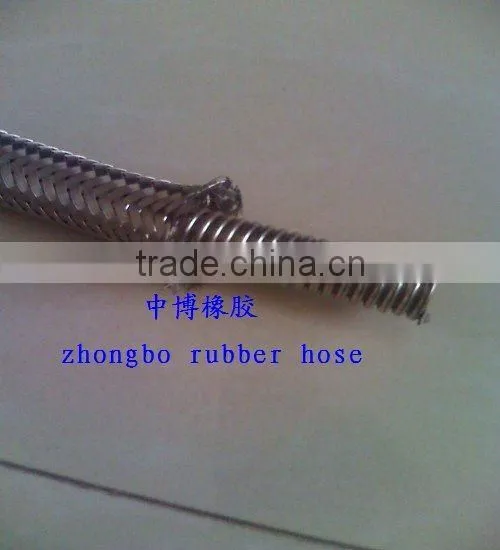

flexible stainless steel hose

Specifications

High pressure rubber hose, low pressure rubber hose and hose fittings
High quality and good price,service

Inner tube: PTFE extruded hose,features as high and low temperature resistant, anti-corrosion, anti-stickness.
Outer Sheath: Stainless Steel SS304 braiding net, improve its pressure resistance,and connected with fast connectors.
Working Temperature range: constant temperature -50°C~ +210°C, short time temperature -70°C~ +260°C.

ModelSAE 100 R2 AT/DIN EN 853 2SN
DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Lengh
	inch	mm	mm	mm	MPa	Psi	MPa	Psi	mm	kg/m	metres
6	1/4	6.4	12.7	15	40	5800	160	22840	102	0.36	50/100
8	5/16	7.9	14.3	16.6	36	5250	140	20000	114	0.45	50/100
10	3/8	9.5	16.7	19	33.1	4800	132	18840	127	0.54	50/100
13	1/2	15.9	19.8	22.2	27.6	4000	110	15720	178	0.68	50/100
16	5/8	19	23	25.4	25	3630	100	14280	203	0.8	50
19	3/4	19	27	29.3	21.5	3120	85	12280	241	0.94	50
25	1	25.4	34.9	38	16.5	2400	62	9420	305	1.35	50
32	1'1/4	31.8	44.5	48.3	12.5	1820	50	7140	419	2.15	20-40
38	1'1/2	38.1	50.8	54.6	9	1310	36	5140	508	2.65	20-40
51	2	50.8	63.5	67.3	8	1160	32	4560	635	3.42	20-40

Hengshui Zhongbo Imp.& Exp. Co.,Ltd.

Products: Variety of steel wire braided rubber hose and hose fittings.

         Oil rubber hose,water rubber hose,brake rubber hose,nylon rubber hose

        Teflon rubber hose,steam rubber hose,air rubber hose,ocean rubber hose etc.

Model:  SAE R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17,EN 853-1SN,2SN;EN-856-4SP,4SH;DIN 1SC,2SC  or customized for you

Size:any size you need

Application: Automobile, Engineering Machinery, Mining, transportation of air and other Hydraulic Control System.

Construction:Tube:oil and weather resistant synthetic rubber

Reinforcement:high tensile steel wire

Cover:abrasion and weather resistant synthetic rubber

Cetification: ISO9001:2000

Selling market: USA, UK, Germany, Korea, Russia, Iran, India, Pakistan, Kuwait, Brazil, Argentina, Venezuela, Indonesia, Malaysia and so on.



Oil rubber hose delivery gasoline,petroleum,keroaene,diesel oil,and the mining field.

Water rubber hose  delivery water and high pressure water

Brake rubber hose  used in the automobile field

Nylon rubber hose and Teflon rubber hose  used in the chemical field.

Air rubber hose  delivery oxygen,carbon and other gas.

Ocean rubber hose  used in the ocean drilling oil field.

Other customized rubber hose you need.
