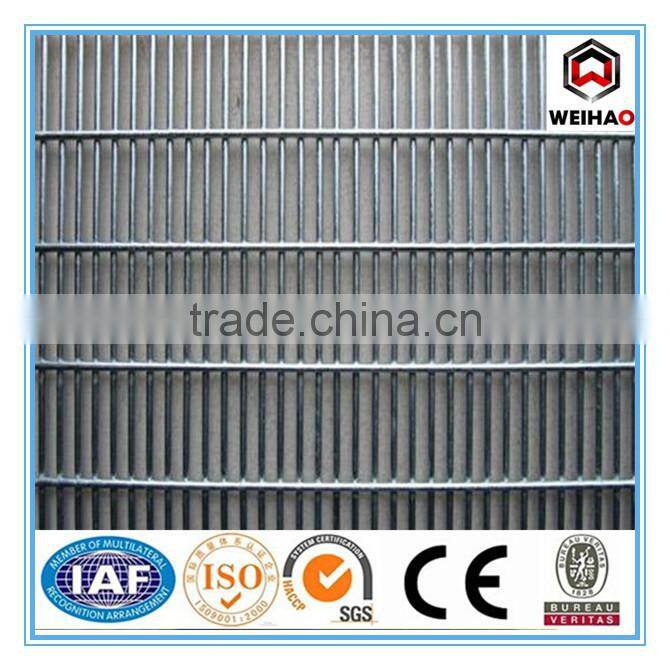

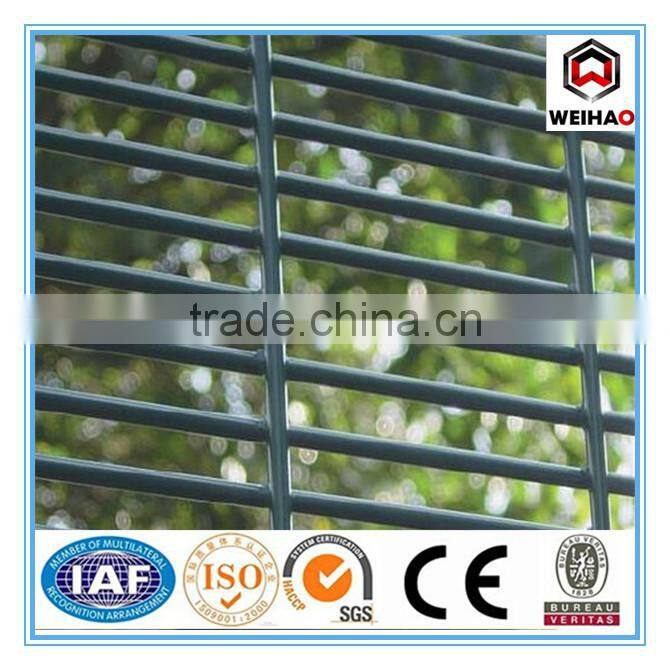

358 High Security Fence/358 Mesh Fence/358 Fence

358 security fence/fencing manufacuter&factory China

358 mesh fence Features:

Anti-climbing: more small openings, no toe or finger holds.

Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.

High strength welded at each intersection.

Durable: covering Galfan and polymer powder coating ensure a long service life.

Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

358 mesh panel size

Mesh pattern: 76.2mm (3") × 12.7mm (0.5") resistance welded well at each intersection

Wire diameter: 4mm horizontal wire and vertical Wire.

Weld strength: range 540-690 N/m2

Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

Colors: Green RAL 6005, or Black RAL 9005.

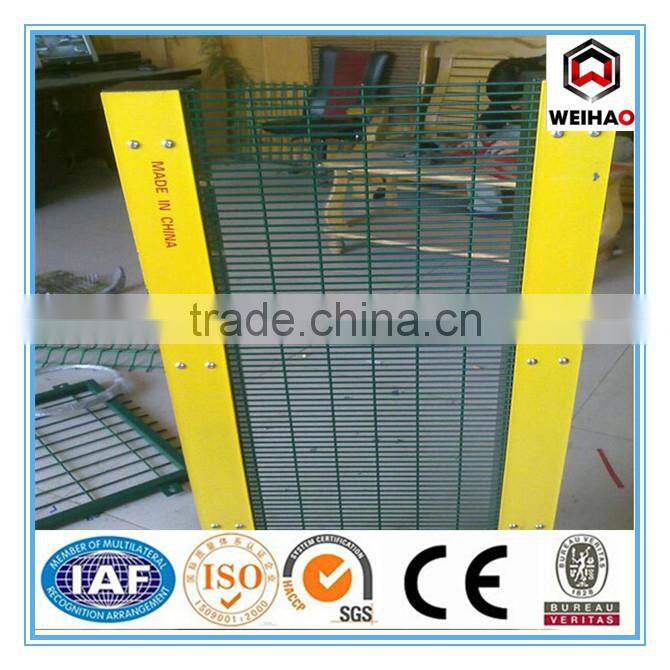

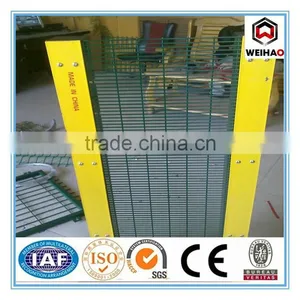

Installation: Overlapped 75mm minimum at each post (shown as the two following pictures below) for securing with slotted clamp bars and M8 diameter bolts.

Fence posts

Material: high grade steel for maximum strength and rigidity.

Post section: 80×60mm, 80×80mm or 120×60mm.

Post Plate thickness: 2.5mm or 3.0mm.

Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

Colors: Green RAL 6005, or Black RAL 9005.

Post cap: 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap.

Metal clips and clamps are hot dip galvanized then powder coating in green or black color.
