500 ton hydraulic scrap aluminum briquette press machine
- 10 Set / Sets per Month
- shanghai
- T/T
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Jinall | Model Number: | SBJ-5000 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

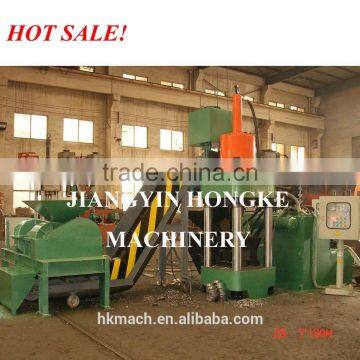

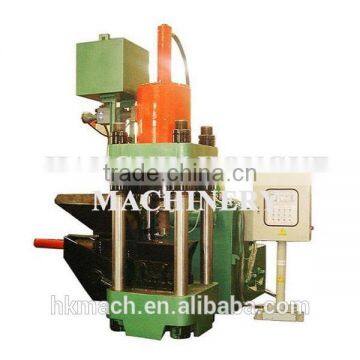

SBJ-5000 500 ton hydraulic scrap aluminum briquette press machine
This mechine is used for cold pressing of other metal scraps including powdery grainy cast iron scrap, high grade ductile cast iron scrap, alloy scrap, steel scrap, copper scrap etc. to columniform caky block with the density >=5.5-6.2T/m3(without any bond). The output of the shit is 8-20 tons.
This machine is designed with vertical sturcture, upper & nether beams of cast steel, firmly and trmtly with PLC controlling, auto charging, auto pressing, auto discharging the machine goes on in full automactically it is very easy to operate.
This machine has been granted two national patents and been only produced by our factory in China. And we have had approximate thousand clients both here and abroad.
Technical data:
Model | SBJ-5000 |
Normal pressure | 3974KN |
Inner diameter of main cyclinder | dia450mm |
Size of briquette | dia130mm (Al chips) |
Density | ≥2.0t/m3 (Al chips) |
Weight of briquette | 3~3.5kg (Al chips) |
Productivity | 3~4 block/min (Al chips) |
Output per hour | 500~800kg/hTon (Al chips) |
Total Power | 37Kw |
Weight | 8950kgs |
Dimension | 3300x3000x3600mm |
Remarks | Automatic |
- Free product documents translation into your language, worry-free to operate and maintain
- 7x24 technical phone service
- Engineers available to service machinery overseas
- Customer database with all customers’ records in it.
- 10 years overseas sales experience
