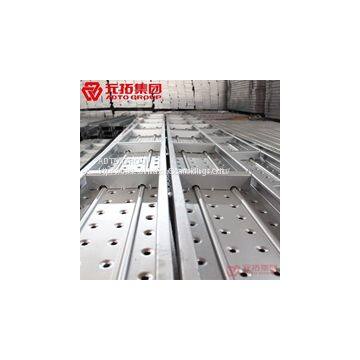

2017 pre-galvanized scaffolding working platform steel plank from adtogroup hot sales
- 1000 Ton / Tons per Month
- tianjin
- T/T L/C
- 25 days
-
Q345/Q235 buliding hot dipped galvanized scaffolding ringlock standard for sale
-
Q235 Scaffolding Plank/Board retaining Clamp/Coupler for sale
-
scaffolding pressed/drop forged swivel/double/fixed coupler/fitting/clamp
-
EN39/BS1139 Black Scaffolding Tube hot sale Q235/Q345 steel tube
-
2017 Construction equipment cuplock standard scaffolding system
Product Details
Brand Name: | ADTO | Place of Origin: | China |
Product Description
scaffolding steel plank metal plank for scaffolding system
1. Type: steel board with hooks/ steel plank without hooks
2.Material:Q195-Q235
3.Surface treat: pre-galvanised
4.Width:210,225,240,250,420,480,500mm
5.Thickness: 1.0-2.0mm
6.Length: Standard size1m, 2m, 3m and 4 m or to be produced as per customer's requirement
7.Folding box should be more stronger
8.Patent holes design to be reduced products' weight
9.Patent ribs make products stronger and drain the water providing any rain days
10.5 years cycle life
Steel Board is constructed in profiled galvanized layers, the high quality of which guarantees
their solidity and durability over the years. It has got a non-slip surface which allows anyone
to work on the scaffolding with the greatest safety. It is constructed by a using completely
automatic system, so does not need any maintenance. In order to ensure high efficiency they
are constructed both with right and left hooks which allows their replacement with other ready
made boards.
Product Feature
-Facilitated passage by two hooks support heads with depressed stiffening ribs
-Provided with non-slip indentation with no cutting edge
-Works with all styles of modular system and tube and clamp scaffold material
-Long term usage. Galvanized steel planks do not absorb water or chemicals
-Pre-Galvanized
Steel Plank Without Hooks
Size (Wideness x Height x Thickness x Length) mm | Weight |
---|---|
210 x 45 x 1.1 x 4000 | 12.75kg |
210 x 45 x 1.1 x 3000 | 9.62kg |
210 x 45 x 1.1 x 2000 | 6.38kg |
210 x 45 x 1.1 x 1000 | 3.20kg |
210 x 45 x 1.2 x 4000 | 13.78kg |
210 x 45 x 1.2 x 3000 | 10.39kg |
210 x 45 x 1.2 x 2000 | 7.01kg |
210 x 45 x 1.2 x 1000 | 3.62kg |
240 x 45 x 1.1 x 4000 | 13.97kg |
240 x 45 x 1.1 x 3000 | 10.54kg |
240 x 45 x 1.1 x 2000 | 6.99kg |
240 x 45 x 1.1 x 1000 | 3.50kg |
240 x 45 x 1.2 x 4000 | 15.11kg |
240 x 45 x 1.2 x 3000 | 11.40kg |
240 x 45 x 1.2 x 2000 | 7.69kg |
240 x 45 x 1.2 x 1000 | 3.98kg |
250 x 50 x 1.1 x 4000 | 14.60kg |
250 x 50 x 1.1 x 3000 | 11.03kg |
250 x 50 x 1.1 x 2000 | 7.45kg |
250 x 50 x 1.1 x 1000 | 3.86kg |
250 x 50 x 1.2 x 4000 | 15.88kg |
250 x 50 x 1.2 x 3000 | 11.98kg |
250 x 50 x 1.2 x 2000 | 8.08kg |
250 x 50 x 1.2 x 1000 | 4.18kg |
250 x 40 x 1.6 x 4000 | 19.90kg |
250 x 40 x 1.6 x 3000 | 14.99kg |
250 x 40 x 1.6 x 2000 | 10.08kg |
250 x 40 x 1.6 x 1000 | 5.17kg |
250 x 50 x 1.6 x 4000 | 20.79kg |
250 x 50 x 1.6 x 3000 | 15.67kg |
250 x 50 x 1.6 x 2000 | 10.54kg |
250 x 50 x 1.6 x 1000 | 5.40kg |
Steel Plank With Hooks
Size (Wideness x Height x Thickness x Length) mm | Weight |
---|---|
500 x 50 x 1.2 x 1829 | 15.30kg |
500 x 50 x 1.1 x 1829 | 14.50kg |
480 x 45 x 1.2 x 1829 | 14.51kg |
480 x 45 x 1.1 x 1829 | 13.27kg |
420 x 45 x 1.2 x 1829 | 13.15kg |
420 x 45 x 1.1 x 1829 | 12.24kg |
500 x 50 x 1.2 x 1219 | 11.00kg |
480 x 45 x 1.2 x 1219 | 10.00kg |
450 x 45 x 1.2 x 1219 | 9.50kg |
450 x 38 x 1.2 x 1219 | 9.00kg |
1. JIS 2M Galvanized Scaffolding Metal Walking Board
2.Material:Q195-Q235
3.Surface treat:hot-dipped galvanised
4.Width:210,225,240,250,420,480,500mm
5.Thickness: 1.0-2.0mm
6.Length: Standard size1m, 2m, 3m and 4 m or to be produced as per customer's requirement
7.Folding box should be more stronger
8.Patent holes design to be reduced products' weight
9.Patent ribs make products stronger and drain the water providing any rain days
10.Life time:5 years guarantee
Why Us:
Xiangjia Steel is a leading manufacturer of mason frame scaffolding,
system scaffoldings and accessories,galvanized steel pipe,Frames,steel props, metal planks
and other related products.
• 7 years experience, sales volume reaches 1.5 billion US dollars.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is close to the port-Xingang,Tianjin.
