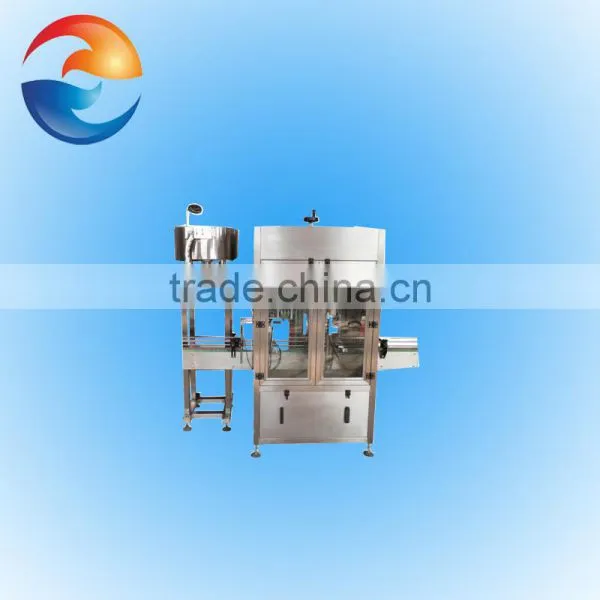

FX-1 Full-automatic Inline Capping Machine For Plastic Thread Cap

Specifications

1.Suitable for plastic thread cap
2.Inline type with good universality
3.Single head screw type suit for 1-5L bottle

Introduction

FX-1 Full-automatic Inline Capping Machine integrates machinery, electricity, gas into integration, is the new high-tech product. The man-machine interface system, it is convenient and swift to adjust the specification. The machine is made up with cap scrambler, cap suppliers, cap scraping and cap screwing which is suitable for automatic capping for large buckets.

Advantages:

with PLC control system,

♦ Electrical components - using internationally renowned brands, ensuring that equipment is reliable and of high accuracy.

♦ Mechanical components - Capping motor is from China famous brand, the rest parts of the machine are made of high-quality stainless steel 304.

Function extensions - can be customized for special requirements allocation, for example: cap unscrambler can be attached or removed.

Maintenance situations - the machine meet the GMP requirements, easy to disassemble, clean and maintain..

Function with - this machine comes with lid device management, anti-covered self-excluded

Exchange specifications – when changing filling specifications, you only need some simple adjusting to make it.

♦ Environmental configuration - the framework of environmental protection can be configured so that the operating environment is cleaner. (This function is customized on request)

Parameters:

♦ Production capacity: ≤2000 BPH

♦ Suitable bottle diameter: Φ30~Φ100 mm
♦ Cap specification: Φ12~Φ70 mm

♦ Compressed air pressure: 0.5~0.7 Mpa

♦ Motor power: 0.5 Kw
♦ Overall dimension: 1500x850x2100 mm
♦ Weight: 400 Kg

♦ Remark: We supply customized service

Show

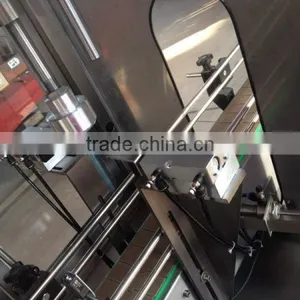

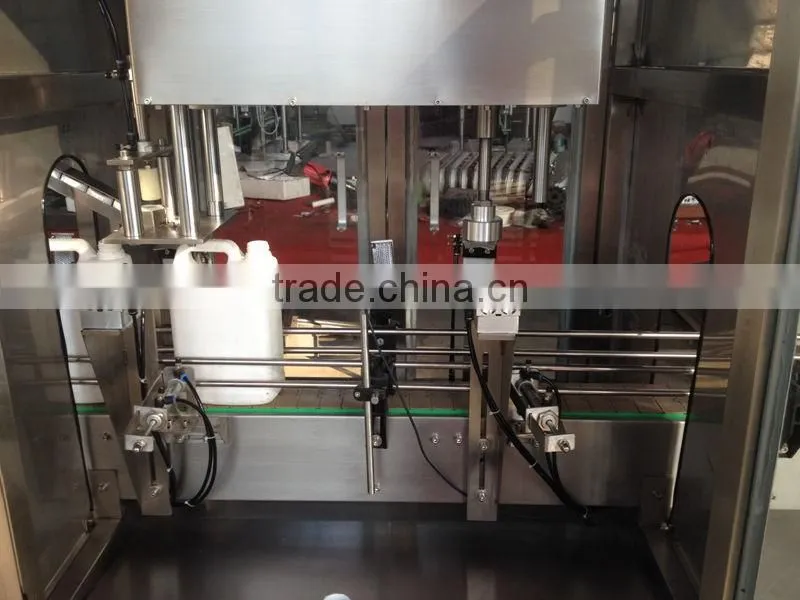

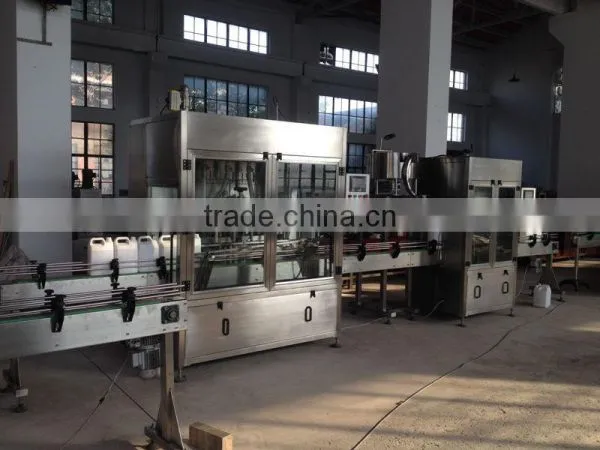

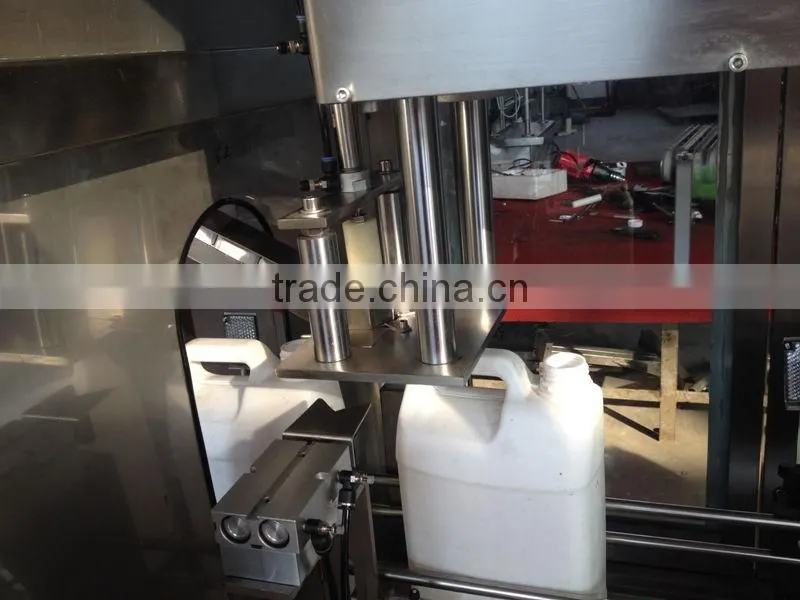

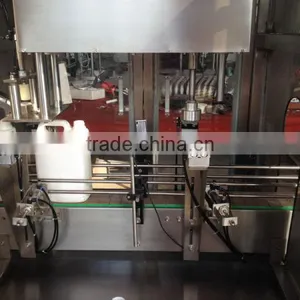

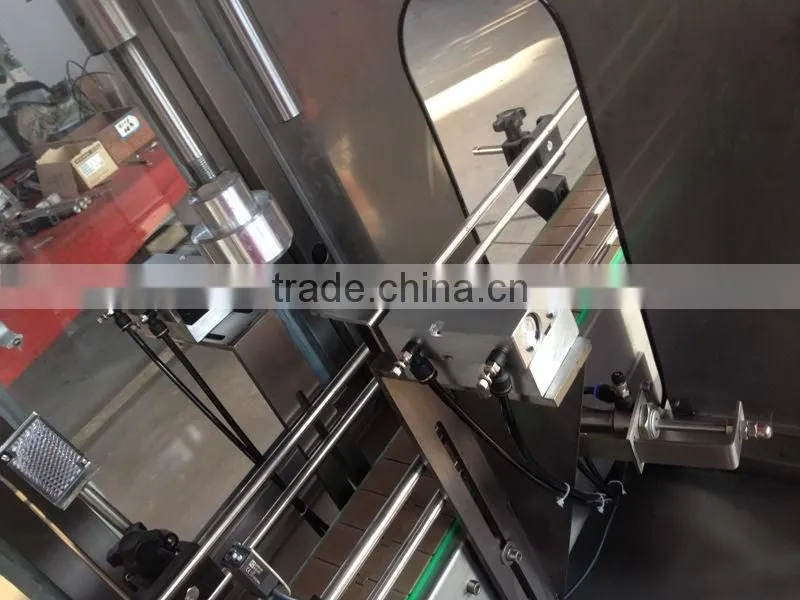

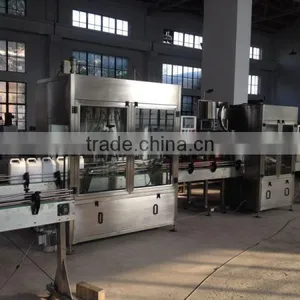

 1.with frame  2.Inside part  3.Cap supply
