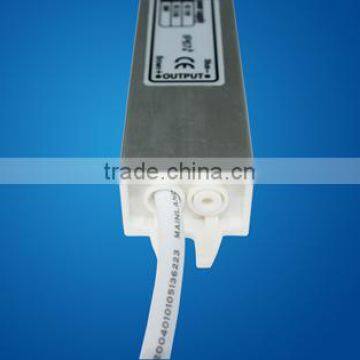

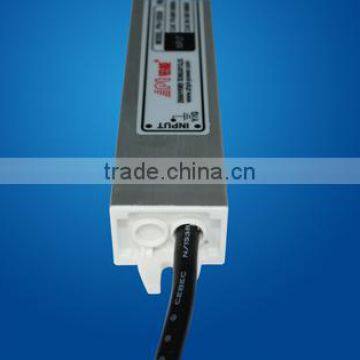

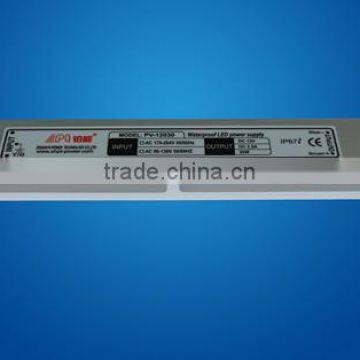

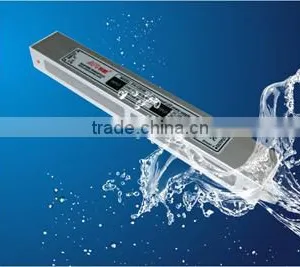

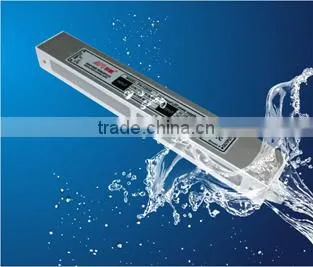

led waterproof power supply constant voltage 12V 30W

FOB Price

USD $6.52 - $6.52 / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Model Number:	PV-12030	Output Type:	Other, AC, Single
Connection:	Plug In

1.The Voltage design (Voltage current mode).

2. The use of the AC input.

3. comply with IP67 rating.

4.Enter the time withstand 300VAC surge for 5 seconds.

5. Protection: Short circuit / overload / overvoltage.

6. Cooling: natural air cooling.

7.100% full load test.

8. High Performance.

Product Specifications
Products Model		PV-12030	PV-24030
Output	Output Voltage	12V±0.5V	24V±0.5V
	Rated Output Voltage	12V	24V
	Output current	0-2.5A	0-1.25A
	Power	30W
	Voltage Precision	12V±0.5V	24V±0.5V
	Output Ripple	240mVP-P	480mVP-P
	Load Reulation	±2%
	Start/Rise time	500ms,20ms/230VAC
	Retention time	20ms/230VAC
Input	Input Voltage range	100-240VAC
	Input Frequency range	50-60HZ
	FP values	≥0.9
	Effeciency	>85%
	Leak Current	0.25mA/240VAC
Protection	Overload Protection	±5% Rated Current output
		Constant current restriction style protection
	Over Voltage protection	110%-150%
Working Protection	Working Temperature	-25℃-50℃
	Storage Temperature	-40℃-80℃
	IP Rate	90%RH non condensing, refer to IP67
	Shake Proof	10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
	Temperature Coefficient	±0.03%℃ (0-50℃)
EMC	Security Standard	IP67 approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008
	Withstand voltage	I/P-O/P:3.75KVAC,I/P-COVER:3.75KVAC,O/P-COVER:500VAC
	Insulatuon Resistance	I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009
Others	Mean Free Error Time	50KHours (25℃)
	Dimesnsion	2203020(LWh)
	Weight	240g
