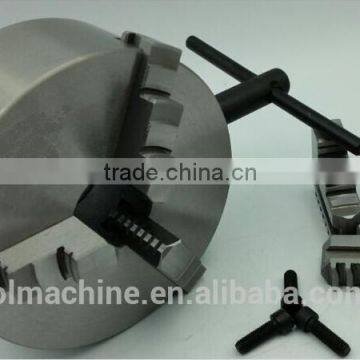

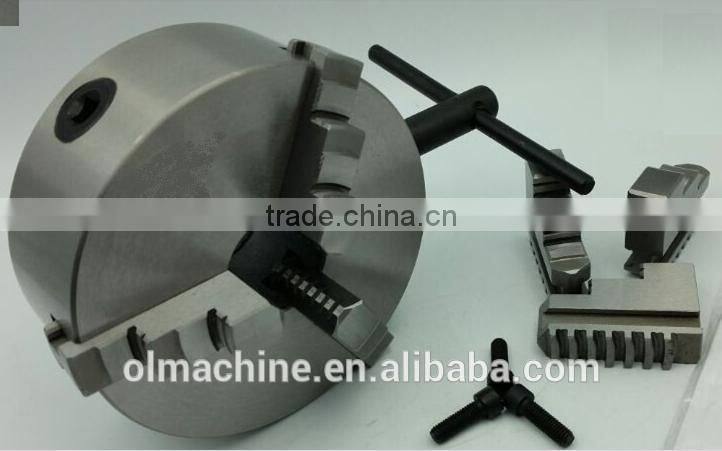

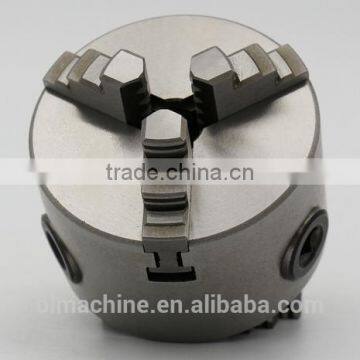

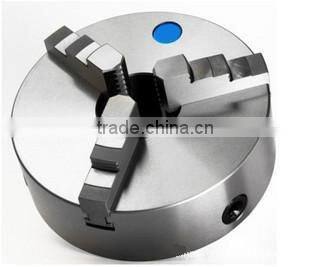

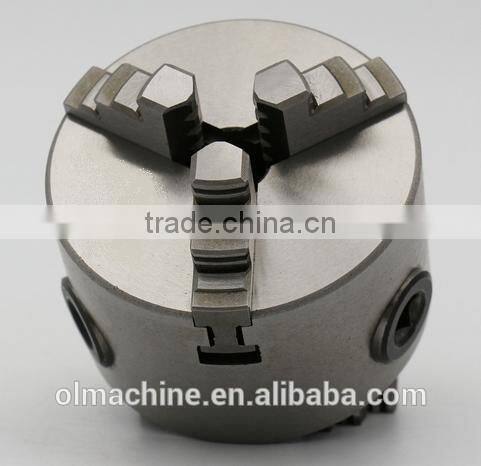

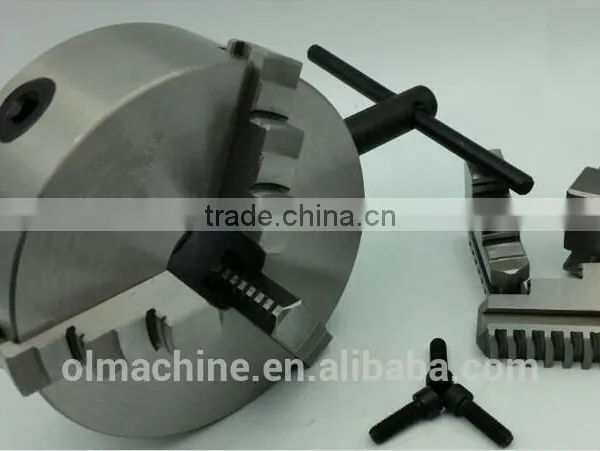

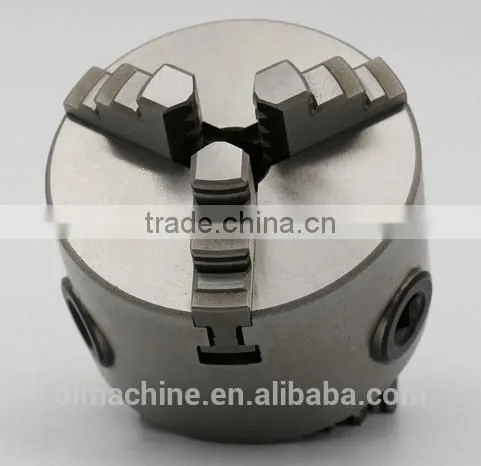

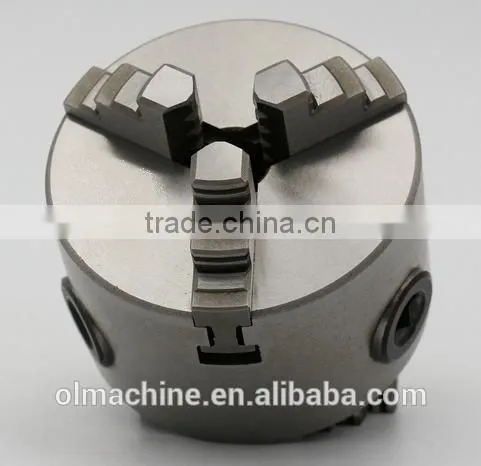

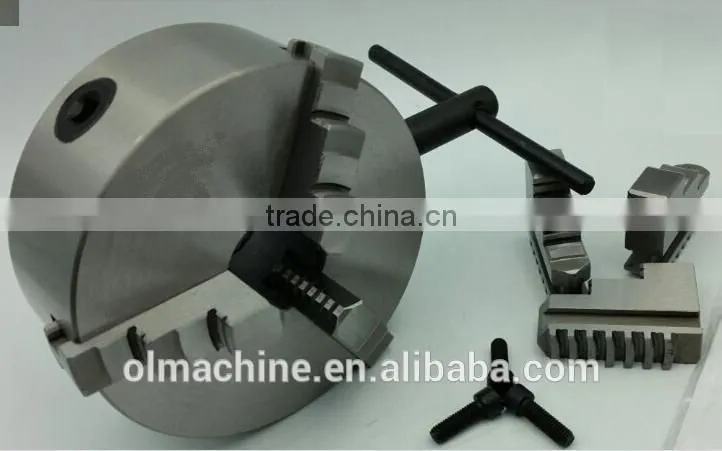

THREE 3 JAW CHUCK, K11 THREE 3 JAW SELF-CENTRING CHUCK, MACHINE CHUCK
- 300 Set / Sets per Month
- China port
- T/T L/C D/P D/A Credit Card
-
FOUR 4 JAW CHUCK, K12 FOUR 4 JAW SELF CENTRING CHUCK, MACHINE CHUCK
-
FOUR 4 JAW CHUCK, K72 FOUR 4 JAW INDEPENDENT CHUCK, MACHINE CHUCK
-
Power feeder model AL-310S AL-410S AL-510S for X Y Z axis
-
slotting head for milling machine with travel 100 125mm
-
TOOL POST AND HOLDERS, Europe type
-
MACHINE VICE, hydraulic power machine vice, drilling machine vice, milling machine vice, precision machine vice, angle vice
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | CHINA | Model Number: | 3 Jaw Chuck K11 |
| Power: | Manual | Number of Jaws: | 3 |
Product Description

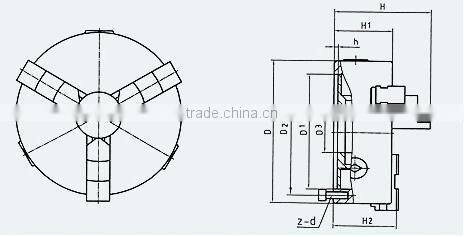

D | D1 | D2 | D3 | H | H1 | H2 | h | z-d | kg |
80 | 55 | 66 | 16 | 66 | 50 | — | 3.5 | 3-M6 | 1.7 |
100 | 72 | 84 | 22 | 74.5 | 55 | — | 3.5 | 3-M8 | 3.0 |
125 | 95 | 108 | 30 | 78 | 55 | — | 3.5 | 3-M8 | 4.5 |
130 | 100 | 115 | 30 | 86 | 60 | — | 3.5 | 3-M8 | 5 |
160 | 130 | 142 | 45 | 95 | 65 | — | 5 | 3-M8 | 8.2 |
160A | 130 | 142 | 45 | 109 | 65 | 71 | 5 | 3-M8 | 8.3 |
165 | 130 | 145 | 45 | 96.5 | 66.5 | — | 4.5 | 3-M8 | 9.3 |
190 | 155 | 172 | 55 | 105 | 75 | — | 5 | 3-M10 | 13.8 |
200 | 165 | 180 | 65 | 109 | 75 | — | 5 | 3-M10 | 15.1 |
200C | 165 | 180 | 65 | 122 | 75 | 78 | 5 | 3-M10 | 14.1 |
200A | 165 | 180 | 65 | 122 | 75 | 80 | 5 | 3-M10 | 14.1 |
240 | 195 | 215 | 70 | 120 | 80 | — | 8 | 3-M12 | 24 |
250 | 206 | 226 | 80 | 120 | 80 | — | 5 | 3-M12 | 25.8 |
250C | 206 | 226 | 80 | 130 | 80 | 84 | 5 | 3-M12 | 23.2 |
250A | 206 | 226 | 80 | 136 | 80 | 86 | 5 | 3-M12 | 23 |
315 | 260 | 285 | 100 | 147 | 90 | — | 7.5 | 3-M16 | 36 |
315C | 260 | 285 | 100 | 155 | 90 | 96 | 7.5 | 3-M16 | 36.1 |
320C | 265 | 290 | 100 | 155 | 90 | 96 | 7.5 | 3-M16 | 40.1 |
320A | 265 | 290 | 100 | 163.5 | 90 | 99.5 | 7.5 | 3-M16 | 40 |
325C | 272 | 296 | 105 | 155 | 90 | 96 | 7.5 | 3-M16 | 42 |
325A | 272 | 296 | 105 | 169.5 | 96 | 105.5 | 12 | 3-M16 | 46 |
380C | 325 | 350 | 135 | 163.5 | 98 | 103.5 | 7.5 | 3-M16 | 60 |
400C | 340 | 368 | 130 | 158.5 | 102 | 106.5 | 6 | 3-M16 | 65.8 |
500C | 440 | 465 | 200 | 197 | 115 | 121 | 6.5 | 6-M16 | 116.2 |
630C | 560 | 595 | 270 | 211.3 | 123 | 130.3 | 8 | 6-M16 | 208 |
800C | 710 | 760 | 385 | 247 | 149 | 157 | 8 | 6-M20 | 305 |
1000 | 910 | 950 | 400 | 278.6 | 176 | 185 | 8 | 6-M24 | 630 |
1250 | 1160 | 1200 | 660 | 280.6 | 178 | 187 | 10 | 6-M24 | 975 |
