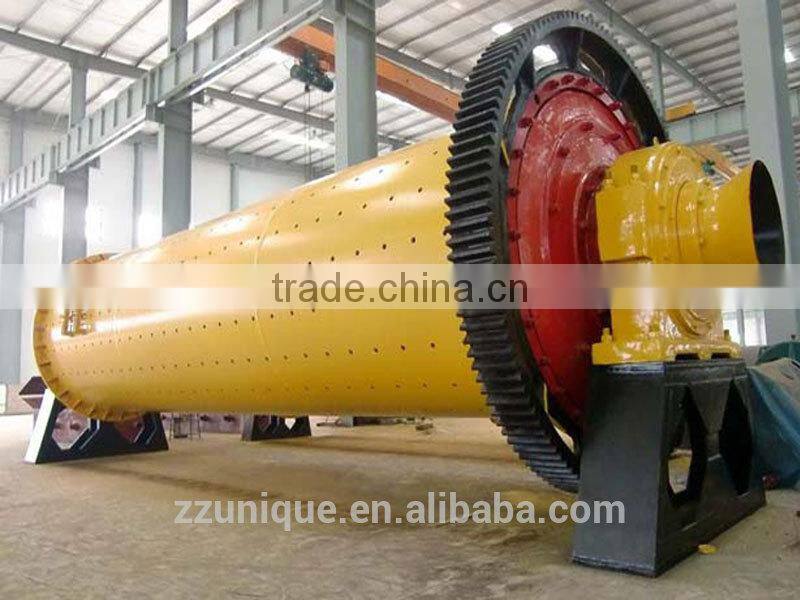

China Zhengzhou New Raw Mill Cement

Specifications

Raw mill is key equipment for the grinding process of the cement clinker
It is mainly used in the cement silicate product indus

China Zhengzhou New Raw Mill Cement



Introduction of Raw Mill Cement:

The raw material ball mill is key equipment for the grinding process of the raw material after the crushing process of it. It is widely used in the cement silicate product industry, new type construction material industry, refractory matter industry and glass ceramic industry for grinding various minerals and materials. After long term experience of design and manufacture, our company now has series of raw material ball mill with various specifications to meet with different requirement from our customers especially for grinding slag and cement. We can also offer customized design according to different material and different technical requirements.



Features of Raw Mill Cement:

Our company adopts suitable transmission methods according to different specifications. We have brim drive and center drive as transmission form. The cylinder adopts new type step lining to increase the grinding area. And it is easily repairable and changeable. The new designed separate-chambered structure adopts flexible lifting blade and fixed lifting blade and it is easily fixed and repaired.



Working Principle of Raw Mill Cement:
The cylinder will rotate by the transmission device. Due to the inertial centrifugal force, the steel balls will stick on the liner plate and rotate with the cylinder together. When the steel balls come to a certain height, it will fall down by gravity and impact the raw material. And the repeated going-up, falling down, slide and roll of the steel balls can grind the raw material together with the liner plates.



Technical Parameters of Raw Mill Cement:



Specification (m)	Ball Mill Type	Transmission Type	Reducer		Motor Power (kw)	Capacity (t/h)	Weight (t)
			Model	Ratio
φ1.5×5.7	Open flow	Brim	ZD40	3.55	130	4.5-6	25.8
φ1.83×6.4	Open flow	Brim	ZD60	4.5	210	7.5-15	43
φ2.2×6.5	Circle flow	Brim	ZD70	5	380	14-26	60
φ2.4×7	Circle flow	Brim	ZD70	5	475	24-28	81
φ2.4×10	Circle flow	Brim	ZD80-4-Ⅱ	6.435	570	32-36	118
φ2.6×10	Circle flow	Brim	JDX710	6.3	800	45-50	130
φ3×9	Open flow	Brim	JDX800	6.3	1000	55-60	158
φ3.2×9	Circle flow	Brim	MBY900	7.1	1250	62-65	195
φ3.5×10	Open flow	Brim	JDX900	5.84	1250	70-75	200
φ3.8×7.5	Circle flow	Brim	JDX900	5.6	1600	80	233
φ4.6×10+3.5	Circle flow	Central shaft	JQS3550	15.1	3550	190	415
φ4.6×10.5+3.5	Circle flow	Central shaft	JQS3550	15.1	3550	210	476



After-sale services



Provide considerate services to minimize clients’ worries.



1) Assist clients to prepare for the first construction scheme;



2) Install and debug the equipment;



 3) Take initiative to eliminate the troubles rapidly at site



China Zhengzhou Unique Raw Mill Cement in Cement Plant For Hot Sale.
