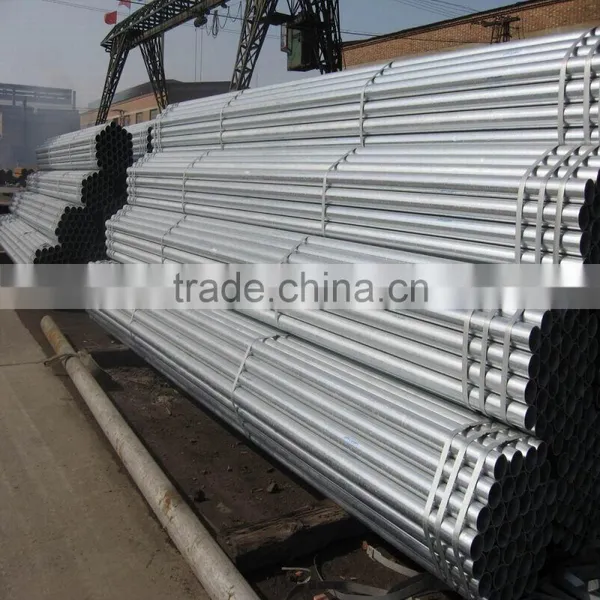

galvanized steel pipe

Specifications

galvanized steel pipe:
Outer diameter:16*16-400*400,16mm-920mm
Wall thickness:1.5mm-12mm
standard:BS1387,ASTM A53

_{^{galvanized steel pipe}}





 Products Details:



1) Round steel pipe: Size from 12mm to 920mm, thickness 0.6mm - 12mm



2) Square steel pipe:Size from 10mm*10mm to 400mm*400mm, thickness 0.6mm - 12mm



3) Rectangular steel pipe:Size from 10mm*20mm to 200mm*400mm,thickness 0.6mm-12mm



4) spiral steel pipe: Size from 219mm to 1620mm, thickness from 4.5mm to 12mm



5) seamless steel pipe: Size from 21mm to 820mm,thickness from 2.5mm to 30mm



6) Angle steel:  Size from 2# to 20#, thickness from 3mm to 24mm



7) Flat bar: Size from 12mm to 150mm, thickness from 2mm to 16mm



8) Channel steel:Size 8# -30#, web thickness 4.5mm-9.5mm,Flange thickness 7mm-13.5mm



9)  IPE: Size 100mm-270mm, web thickness 4.1m-6.6mm, Flange thickness 5.7mm-10.2mm



10)IPEAA:Size 80mm-160mm,web thickness3.2mm-4.0mm,Flange thickness 4.2mm-5.6mm



11)IBEAM:Size100mm-360mm,web thickness4.5mm-12mm,Flange thickness7.6mm-15.8mm



12) H BEAM: Size from 100mm to 900mm, thickness from 6mm, 8mm to 16mm,28mm



13) Cold rolled steel strip: Width from 32mm to 685mm, thickness from 0.3mm to 2.0mm.



14) PC steel stand: Size from 8mm to 18.5mm



15) PC steel wire: Size from 4.8mm to 9.0mm



16)  the other non-conventional type steel pipe as following



oval pipe	wall thickness
11x22	0.6--1.2
12x25	0.6--1.2
15x30	0.6--1.5
17x30	0.8--2.5
25x40	0.7--1.7
25x45	0.7--1.7
30x60	0.9--1.7
25x70	0.9--1.7
28x70	0.9--1.7
30x70	0.9--1.7
30x80	0.9--1.7
40x80	1.0--1.7
40x90	1.0--1.7
20x40	0.9-1.5
25x70	0.9-1.5
D figure pipe
40D	0.9--2.0
36D	0.9--1.5
hollow section
L28	0.6-1.8
T28	0.6-1.8
Z28	0.6-1.8
L38	0.6-1.8
T38	0.6-1.8
Z38	0.6-1.8
L50	0.6-1.8
T50	0.6-1.8
Z50	0.6-1.8



^{Standard:BS1139,BS1387-1985, ASTM A53B Sch10-40,ASTM A500, API5L.API5CT, DIN2440 and EN10219}

^{Material:Q195,Q235,Q345,SS400,S235JR,X42,X46,X52,X60,X65}
