Household Usage and Infrared Thermometer Theory factory supply thermometer

strong carton box

Specifications

1 Temp range:-50C to 550C
2 Temp resolution:0.1C/F
3 Emissivity:Fixed at 0.95
4 Basic accuracy:-+2%

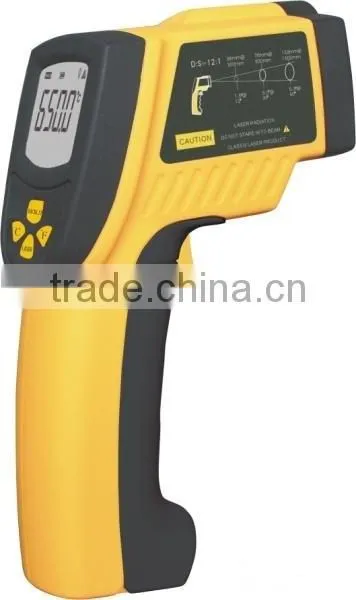

IR Thermometer (-50 ~ 900 C / -58 ~ 1652 F)

Brief Description



This Digital Infrared Thermometer is compact and easy to use. It is a very useful item for measuring surface of hot, hazardous or hard to reach objects without having to touch them. You just aim with Laser Point, press the button, and read the temperature in less than a second.



It has wide measuring range of Temperature from -50 to 900 °C (-58 ~ 1652 °F). The thermometer is also featured withBacklight LCD, Large Distance to Spot Ratio(12:1), High Accuracy, Fast Responding Time (0.5 seconds), User Adjustable Emissivity from 0.10 to 1.00 and Spectral Response from 8 to 14 µm.



The thermometer is switchable between °C and °F and also has 12 memories data storage, Maximum, Minimum, Averageand Difference temperature functions, Adjustable High and Low Temperature Alarm and 5 levels Battery Life function.



Infrared Technology



Infrared Thermometer measures the surface temperature of an object. The unit's optics sense emitted, reflected and transmitted energy which is collect and focused onto a detector.



The unit's electronics translate the information into a temperature reading which is displayed on the LCD. For increased ease and accuracy, the laser pointer makes aiming even more precise.





Applications

Heat ventilation air-conditioning and refrigeration

Automotive industry

Electrical & power voltage/current inspection field

Water treatment and water quality inspection

Environmental monitoring

Marine and weather

Gas industry

Food processing industry



Features

Memory storage function (up to 12 data)

Wide Temperature range with -50 ~ 900 °C (-58 ~ 1652 °F)

With D:S = 12:1, maximum distance from the target object

Highly accurate and reliable

Adjustable Emissivity from 0.10 to 1.00 (Preset at 0.95)

Spectral Response from 8 to 14 µm

Large clear LCD display with Backlight

5 levels Battery Life Indication

Auto Power Off

Data Hold Function

Access surface temperature in 1 second

Selectable between °C and °F

Maximum, Minimum, Average and Difference temperature functions

Adjustable High / Low Temperature Alarm

Fast response time (0.5 seconds)

Measure hazardous or inaccessible objects (high-voltage parts)

Pre-Calibrated in Factory

Targeting guide or laser pointer with on/off switch for accuracy are provided

Laser Pointer on/off feature



Specifications

Temperature Range: -50 ~ 900 °C (-58 ~ 1652 °F)

Resolution: 0.1 °C or 0.1 °F

Accuracy:

o-50 °C (-58°F) ~ 0 °C (32 °F): ±3 °C (±5 °F)

o0 °C (32 °F) ~ 900 °C (1652 °F): ±1.5 °C (±2.7 °F) or ±1.5%

Repeatability: 1 % or 1 °C

Response Time: 500 ms, 95% response

Spectral Response (Wavelength): 8 ~ 14 µm

Distance to Spot Ratio (D:S): 12:1

Emissivity: 0.10 ~ 1.00 (Preset at 0.95)

Selectable between °C / °F

Data Hold Function

Laser Target Pointer Selection

Backlight Display Selection

Auto Power Shut Off

Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)

Relative Humidity: 10 ~ 95% R.H. non-condensing, up to 30 °C

Storage Temperature: -20 ~ 60 °C (-4 to 140 °F)

Power: 1 x 9V Battery (not included)

Battery Life: 22 hours (Non-Laser Mode), 12 hours (Laser Mode)

Item Dimension: approx. 175 (L) x 100 (W) x 49 (D) mm (6.89 x 3.94 x 1.93 inch)

Item Weight: approx. 226 g (7.97 oz) (battery excluded)



Table of approximate emissivity:



Material Emissivity Material Emissivity

Aluminum 0.30 Lead 0.50

Asphalt 0.95 Limestone 0.98

Basalt 0.70 Oil 0.94

Brass 0.50 Paint 0.93

Brick 0.90 Paper 0.95

Carbon 0.85 Plastic 0.95

Ceramic 0.95 Rubber 0.95

Concrete 0.95 Sand 0.90

Copper 0.95 Skin 0.98

Dirt 0.94 Snow 0.90

Frozen Food 0.90 Steel 0.80

Hot Food 0.93 Textiles 0.94

Glass (plate) 0.85 Water 0.93

Ice 0.98 Wood 0.94

Iron 0.70





One Set Included

1 x Infrared Thermometer

1 x Instruction Manual

Standard Factory Package
