Specifications
1.lab gum kneader2.high viscous z blade mixing machine
3.mini capacity from 2L-50L
4.CE
lab gum kneader
small-lot production / lab
1. application:
kneading machine can kneading various viscosity BMC,CMC it also can be used in
chemical, plastic, rubber, printing ink, carbon, medicine and food industries.
5. Specifications: (for your reference.)
2L
NO | ITEM | SPECIFICATION |
1 | Capacity | 2L kneader |
2 | Electric power | Based on your factory electric |
3 | Material | All are stainless steel material |
4 | Motor power | 0.75ith ZSY type reducer |
5 | Jacket | Heating jacket |
6. | Lid of chamber | Stainless steel 304 |

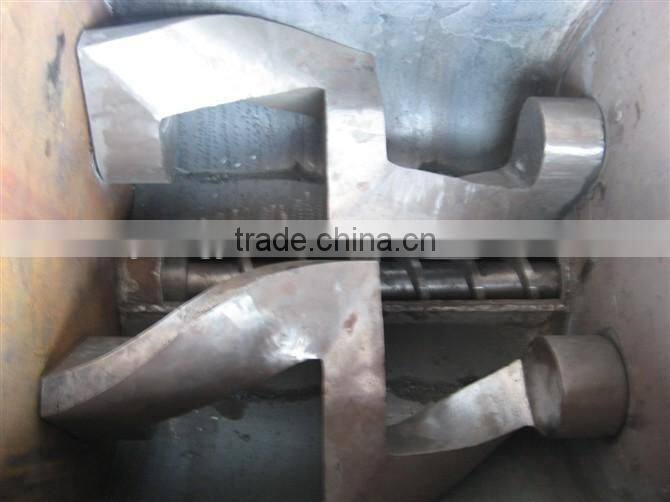

7 | Balde design | Blade in Z shape and clearence for cleaning |
8. | Blade speed | Quicker 33,rpm lower 23,rpm |
9. | Clearance of two blade | 5mm |
10 | Support | Bench mountable |
11 | Discharge | Manual tilt discharge |
12 | Shaft seal | PTFE |
13 | Control cabinet | It will be Attached with the machine , with stop/start button an emergency stop button , also with digital temperature indicator |
14 | Delivery time | 30days after received the deposite |
15 | Warranty | One year onece shipped to you |
50L
NO | ITEM | SPECIFICATION |
1 | Capacity | 50L sigma mixer |
2 | Chamber | Stainless steel with the blade |
3 | Material | Body carbon steel and chamber SS 304 |
4 | Motor power | 11KW with ZSY reduction box |
5 | Jacket | Jacket for heating |
6. | Heating power | 4KW |
6. | Lid of chamber | Silicon rubber sealed ,and an valve with clips can be open and closed with sight glass |
7 | Balde design | Blade in Z shape and clearence for cleaning |
8. | Blade speed | Quicker 45, lower 23. can be adjusted |
9. | Clearance of blade | 5mm |
10 | Vaccum | Needed insde ,general degree -0.094Mpa |
11 | Discharge | Screw extruder discharge with extruder 7.5KW power |
12 | Vaccum pump | 1.1KW power ,cycling by oil |
13 | Control cabinet | Attached with the machine , with stop/start button an emergency stop button , also with digital temperature indicator |
14 | Delivery time | 35days after received the deposite |
15 | Warranty | One year onece shipped to you |
16 | Document attached | Operating and maintain manuals in english version, |

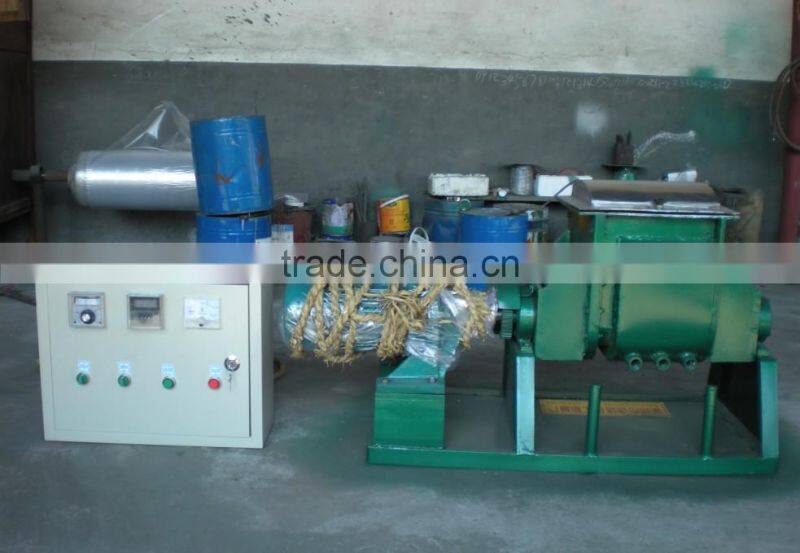

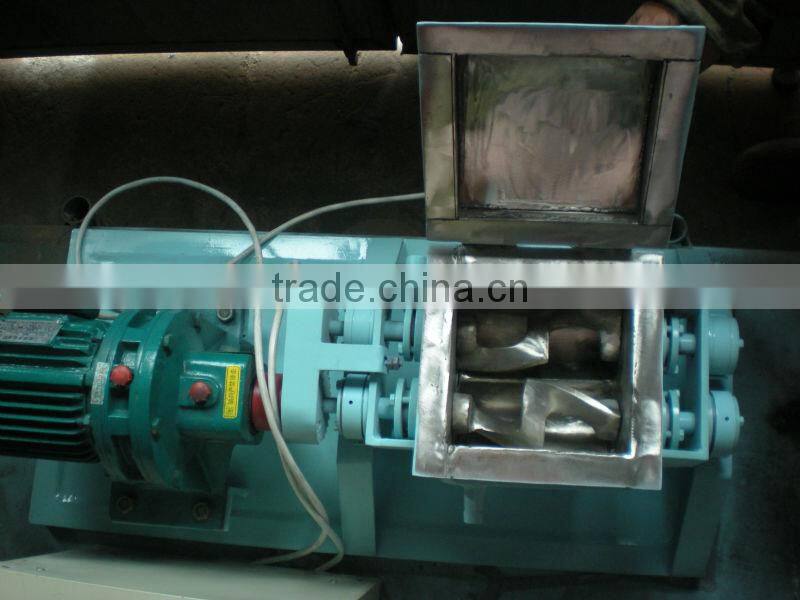

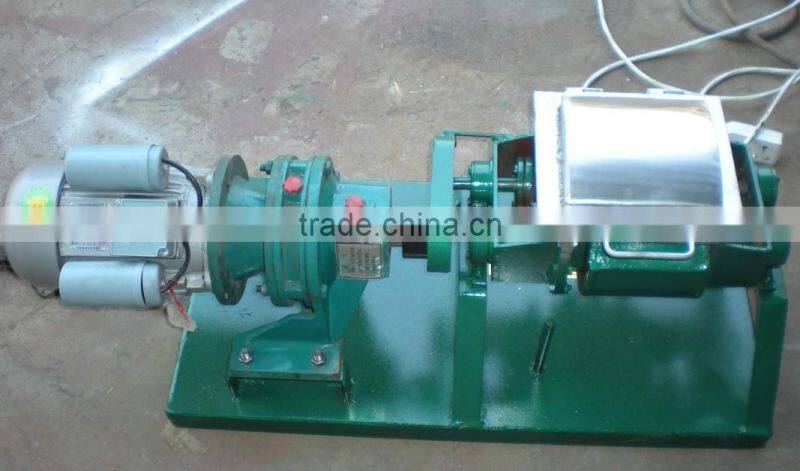

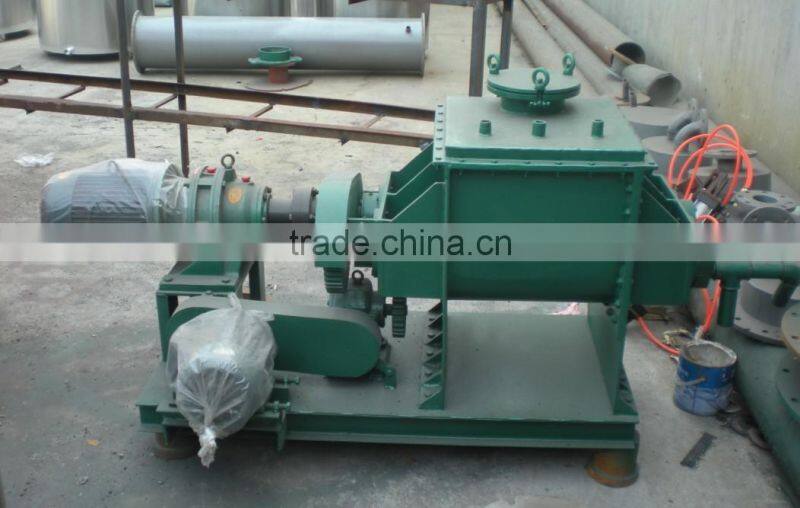

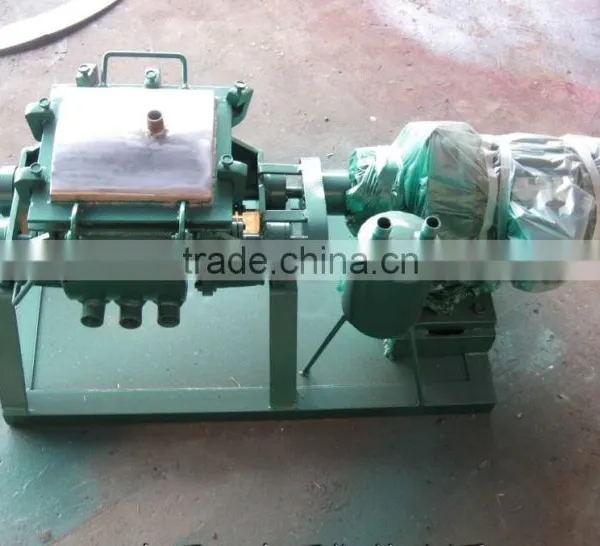

6. Pictures of machine

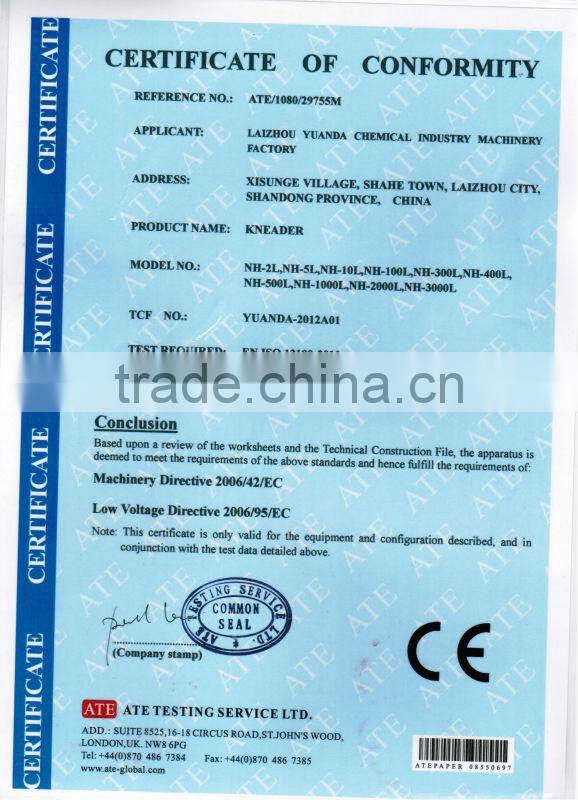

Euro CE Certified
If any interest, pls contact:
