Unsaturated Polyester Resin Equipment/chemical Mixing Reactor
- 100 Unit / Units per Month
- QINGDAO
- T/T
- chemical reactor for complete epoxy/Phenolic/unsaturated polyester resin production line/stainless steel chemical reactor
- chemical unsaturated polyster resin equipment 100L-30TON
- unsaturated polyester resin chemical reaction vessel production line
- small scale pilot resin production line machine
- unsaturated polyster resin equipment manufacture
- 10ton/batch unstaurated polyster resin plant for sale
Product Details
Condition: | New | Mixer Type: | Agitator | Product Type: | Other, resin,adhesive |
Application: | Liquid | Additional Capabilities: | Other, mixing,heating | Place of Origin: | Shandong, China |
Brand Name: | YD | Model Number: | YD-FY-OO2 | Max. Loading Capacity: | 30000L |
Voltage: | 220V/380V/415V/440V | Power(W): | 0.75-37kw | Dimension(L*W*H): | Can choose |
Certification: | ISO9001 | Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot sale complete resin production line/
1ton/batch epoxy resin making machine
Resin plant relevant information:
Widely used for thousands of different kind of resin,like alkyd resin,unsaturated polyster resin,phenol resin,epoxy resin ,adhesive etc.

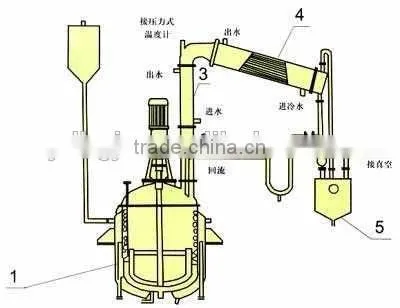

Configuration:composed by the condenser( vertical and horizontal),reactor,oil-water separator,dilute kettle ,buffer tank five parts.
Material:304/316 stainless steel and Q235 carbon steel.
Heating:by electric or steam ( use bolier fuel can be nature gas,oil,coal)
Output :smallest is used for labratory before mass production about 100kg per batch,from 1 ton to 50 ton can meet different requirment
experience and export:
we have do this machine produce more than 10 years,have rich experience and mature technical to design and produce this machine,any detail requirment we can as discuss to make.
export:we have export this machine to Saudi Arabia,Russia,India,Pakistan,Indonesia,etc
service:we can send engineer to help instal complete production line and guide produce
The complete production process:
1. put the material to the 5000L reactor kettle,start heating ,when the temperature reach about 100 degrees,it will produc gases,and the gas will into the separation column.
2. after part be cooled by the separation column, the rest gas into horizontal condenser,then condenser will cooling the gas ,after all the water and gas will into the catchment device.
3. the catchment device,will separate material back to reactor kettle,and exclude the water.(the process may be last about fifteen to twenty hours)
4. during the reaction process,in order to improve the speed, can extracting vacuum,when reach the suitable time, sampling, assay viscosity,if meet the requiment, then cooling.
5. when the temperature reach 130 degrees,put the raw materials to dilute kettle,and add Xylene (this kind of material) to dilute kettle, diluting , cooling ,then make the prodction you need.
Technical parameters
Reactor L | Filler volume | Vertical condenser area | Horizontal condenser area | Water storage device L |
50 | 0.002 | 0.1 | 0.29-0.5 | 8 |
100 | 0.005 | 0.19 | 0.58-1 | 30 |
300 | 0.01 | 0.22 | 1.49-2 | 53 |
500 | 0.015 | 0.38 | 2.08-4 | 70 |
1000 | 0.025 | 0.62 | 3.17-8 | 140 |
2000 | 0.042 | 1.12 | 5-12 | 245 |
3000 | 0.064 | 1.53 | 6-16 | 280 |
4000 | 0.098 | 2.07 | 8-18 | 320 |
5000 | 0.138 | 2.49 | 10-20 | 400 |
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience to many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
Advantages
1. Professional senior enginners to find the best solutions for you;
2. 15 years' production experience
3. Timely after-sale service, if any problem occurs, we would reply to you within 8 working hours;
4. Timely delivery,
5. Our experienced workers for site installation and commission
Factory
Laizhou Yuanda Chemical Machinery Factory, to create professional high-quality chemical machinery, plastic equipment, hardware accessories, resin equipment, master batch equipment and chemical equipment and so on. The plant is located in the beautiful Bohai Bay, the junction of Yantai, Qingdao, Weifang City, Laizhou. Here convenient transportation and strategic location, is an ideal place for business in the office.
The factory is a research and development, manufacturing and sales, after-sales service for the integrated enterprise. Number of years in mechanical design and development, experienced professional and technical management personnel. In a reasonable structure, durable, easy operation and maintenance, etc., to meet the different requirements of new and existing customers of products sold throughout the country trusted by the user. It has been rated municipal advanced enterprise, ministerial quality standards units, premium credit business.
Under the leadership of director Liu Xiaobin, establish and improve the production, sales and after-sale service of complete quality assurance system, equipped with a lean staff, lifting the user's worries.
Liu Xiaobin director with the staff welcomed all the friends patrons, and is willing to cooperate in good faith, to create the 21st century glory.
