Suzero Zoomable Long Distance 100mw tactical night vision riflescope solutio of 100mw Green Laser Flashlight/Sight (ES-LS-KS300)

FOB Price

USD $160 - $250 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port NINGBO
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

OEM

Model Number:

ES-LS-KS-300

Type:

Other, Red Dot & Laser Scope

Product Description

Subzero working 100mw Long Distance Green laser illuminator designator Flashlight feature:
1. Low temp up to - 25 centigrade workable.
2. Laser power adjustment, output power reaching 120mw
3. Inside moudule heating system intergrated.
4. A wide range laser beam diameter adjustable with min dia locking system
5. Both laser mount and weaver rail riflescope ring mount attaching with adpators to fit size with both 25.4mm and 30mm.
6. Rechargeable batteries with a spare battery including charger in both wall and car plug.
7. High grade individual aluminium gift case package.

Product Description

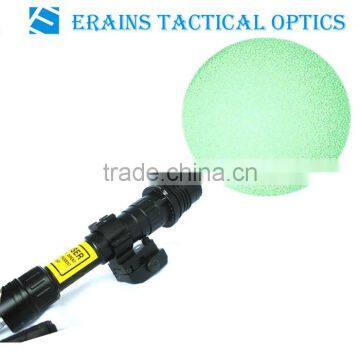

The designator mounted on rail and weapon for better understanding and look for ref:

Product Sample Testing Report

Name	ES-LS-KS300 Professional Green laser designator Flashslight (ICR18650 battery box)		Output	> 80-100mw
Test unit	1PC Sample
Test contents	Standard requirement
High and low temp test	High temp	It can work steady under 40 centigrade for 15-20 minutes, but it can work well constently under 35 centigrade.	Recommended working tem from -10 centigrade to +35 centigrade, pre heating starts automatically in sub zero temp, below -15 centigrade, it needs to heat up a short period. before it works steady. If hunting below sub zero conditions, use black lense cover. Start the designator asap when animals are approaching, then just flip the front cover up when you are ready to shoot.
	Low temp	It will delay in light under -25 centigrade after 2minutes, it can work well under -20 centigrade
	Low temp start	When it was stored under -20 centigrade in closed mode for 10 minutes, it needs to heat for 1-2 mins before it can work steady.
Random vibration test	Stimulate the shock platform	Stimulate the semi-rifle continuous shooting platform
Random vibration test	Drop test	fall from 3 meters height to sediment ground	No changes on brightness and dot position after 3 times falling
Proof test	Water proof	Rain water proof
Proof test	Dust proof	IP65
	Laser wavelength	530-532nm
	Laser power	Output power=120-150mw Exit power> 80-100mw
	Laser bean dot diameter	Measured at 100 meters distance Max dia 26m (+/-10cm) Min 8mm (+/-5cm)	Error between +/- 5 to 10cm
Produce working info	Power consumption	Max 15W under -20 centigrade, normally is 3W under 20-25 centigrade
	Batterysort	ICR18650 rechargeable Lithium battery with 2400mAh
	Voltage	3.7V
	Batteryworking time	Work constantly for 6-7 hrs under 25 centigrade, but it just can work constantly for 2-3 hrs under -20 centigrade
	Main body material	6063-T6 Aluminium
	Finish	Normalanodize
	Outer size	L225mm X Max dia 46mm, Min dia 25.4mm
	Weight	2.1kgs for full set with aluminium case
	Heating means	PWM

Feature:
Low temp working compatbility
Power adjustment
Variable laser beam diameter adjustable
High-quality green laser module, optical glass lens, driver circuit and housing
High Transmission
Short System Length
Small Spherical Aberration
Hight precision pressure pad plug and end lid hole contacting system
High reliability, high stability, long life, low price
Fully o-ring sealed for dust
Fully multicoated optical lens systems
Rotary optical beam collmator - Allows quick adjustment of beam diameter and intensity
Amplified coherent light-Most efficient light for long distance illumination

Application Area:
Laser Alignment
Aiming and Positioning
Hunting and Spotting
Search and Rescue
Outdoors and Hiking

Packaging & Shipping

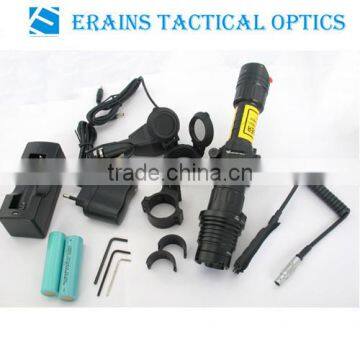

Packing list:
1x Tactical Green Laser Designator Illuminator Flashlight
1x Remote Pressure Pad with wire Plug switch
1x Rubber cover on/off push button switch
2x ICR18650 rechargeable Lithium battery with 2400mAh
1x Weaver rail riflescope ring Mount (Φ 25.4mm and Φ 30mm or 34mm )
1x Windage and elevation adjustable laser mount (Φ 25.4mm and Φ 30mm)
1x Front exit lense Rubber cover
3x Allen wrenches

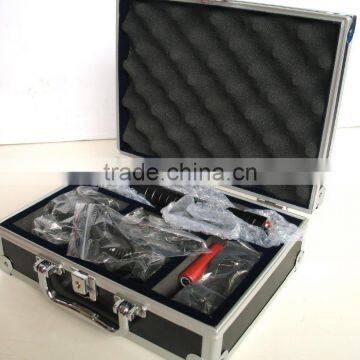

1x Aluminium case with individual inner carton

The designator with front lense filter and cover protected in case of any laser shooting by mistake while not in use and also can reduce the light brightness with 60% with the filter function.

Pack information:
Unit Weight: 2.00 kgs
GW for individual unit set with package: 2.4kgs
G. W: 19.50 kgs
N. W: 18.50 kgs
CTN: 8 PCS
Aluminium case size: 275*210*97
Outer inner box size: 29X24.5X11.5CM
Carton Size: 515*620*275mm

Products color: Black with Hard anodize

Our Services

Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.

Warranty: 1 Year free warranty with up to 5 years limited warranty for this model designator.

Warranty, we offer 13 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Shipping Method, We provide comprehensive shipping methods, for small quantity orders we ship by DHL Air-Express, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer's cargo agent in China. We quoted prices are EXW price, don't include shipping cost.

Company Policy: Strive for the Customer Satisfaction
We have rich experience upon the international order all over the world. We can deliver the order to your office or home directly. We will combine the shipping cost for multi items purchase.

FAQ

Finally, your feedback and suggestion are very important for us.
Thanks again for your attention. We sincerely hope you will enjoy our products.

All our products are built for real firearms. Our latest designators are manufactured with high quality components and materials. Excellent quality and stable performance. Water resistant, shock proof and recoil proof via (under) necessary condition testing.
