Printing Dr blade

Printing Dr blade

Brand : AARON
Processing property : China
Material : high quality carbon steel in Germany
Model : 200/300/500#
Specification : width 30/40/50/60 the thickness of 0.15 mm, 0.2 mm
Height of knife edge : 1.3 mm,
Thickness of  knife edge : 0.075
Length : 100 meters
Widely used in : gravure, flexo printing, glazing and decorative coating materials, printing and other industries
Suitable for machine speed : 180 ~ 250 m/minute

AARON doctor blade use German quality steel strip production with advanced production technology.Use for printing machine to scrape off the excess ink roller on cylinder surface.In the process of each printing, wipe off no pattern area ink is a key solution.In gravure printing ink scraper requirements must have abrasion resistance and high efficiency, to guarantee the high quality printing quality, and it must be suitable for the modern intaglio printing lasting and high speed.AARON scraping blade use German quality steel strip production with advanced production technology.

1. Special cutting edge technology, the blade angle of circular arc, the production process does not hurt the version;

2. Good elasticity, stable quality and durability, scraping effect is outstanding;

3. With excellent mechanical properties, so that the high speed and lasting printing can be the perfect embodiment of.

4. In the process without the use of sanding can ensure good contact with the surface of plate to achieve the optimum scraping effect.

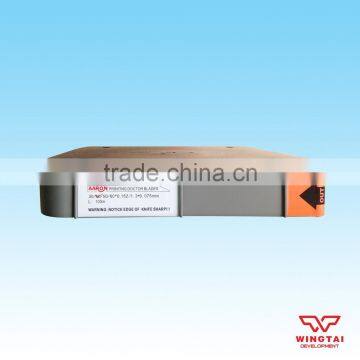

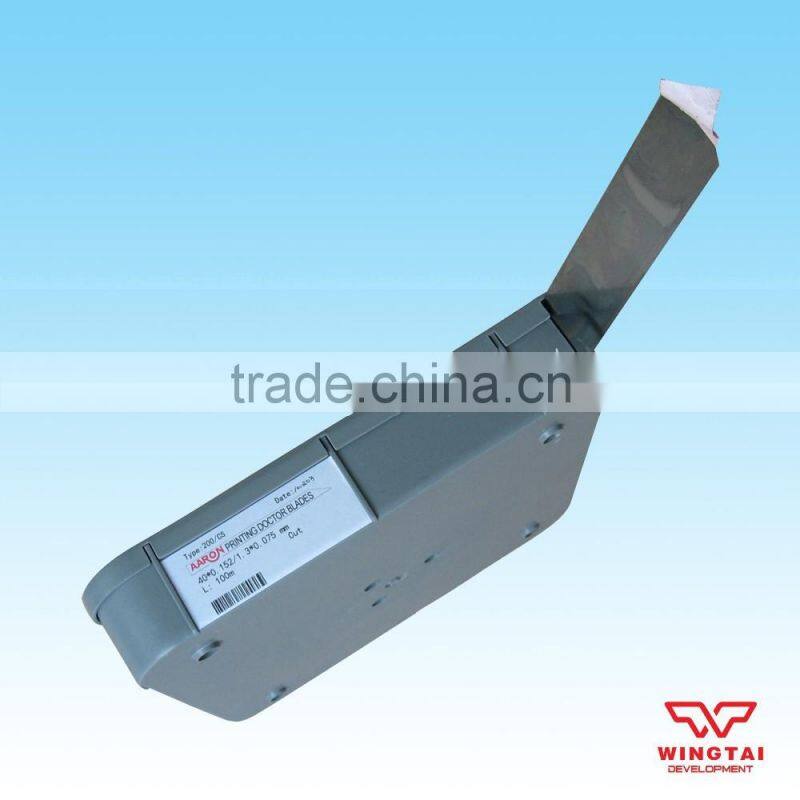

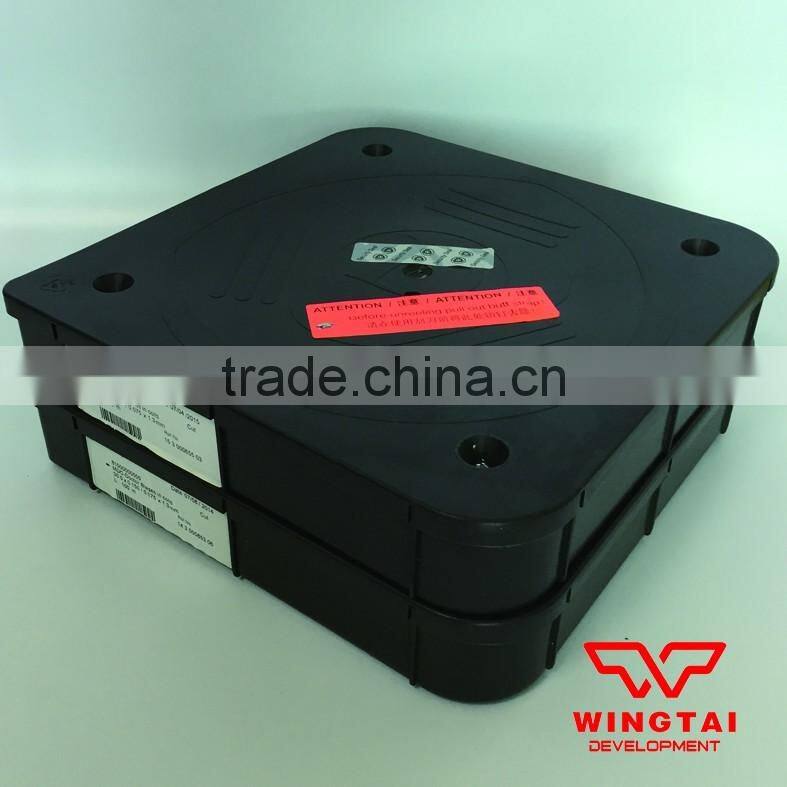

5. Each box 100m, anti-corrosion plastic boxes and environmentally-friendly paper packaging two choice, quality assurance.

6. When used without opening the box, out of use. Applicable to machine speed over 120~150m high speed machine.

7. AARON scraping blade is widely used in gravure, flexo printing, glazing and decorative coating materials, printing and other industries.

AARON scraping blade hardness is 580 hv + / - 15, is not easy to wear plate cylinder.
AARON scraping blade in the whole production process strictly abide by the SS - EN ISO 9001:2000 quality certification system, the quality guaranteed.

Specification:

• AARON scraping knife commonly used has the width of 30/40/50/60mm, according to different machines and the substrate to selectively use.
• AARON scraping knife blade thickness 0.15mm, height 1.3mm, blade thickness 0.07mm
• AARON 580HV+/-15 squeegee hardness, not easy to wear plate cylinder.
• AARON scraping knife, the entire production process in strict compliance with the SS-EN ISO 9001:2000 quality system certification, quality guaranteed.
• AARON scraping knife used in gravure printing, flexo printing, glazing coating and decoration printing and other industries.

Hebrew scraping knife existing, high speed scraper for you to choose.

Rongtai as Germany AARON scraping knife regional general agent of China, focusing on the gravure printing equipment development and supply,

Our service will bring you value for money!

AARON scraping knife, stable quality, reasonable price, economy and practicality, is the most cost-effective of  high-middle speed scraping knife.
