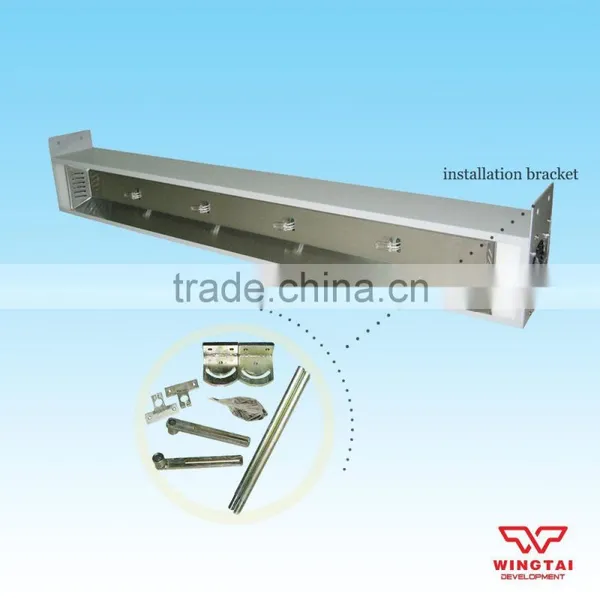

Printing Fixed Stroboscope

Printing Fixed Stroboscope

Technical parameters:

Power supply: 220V±10% 50HZ

Power: <100W, 2~70HZ strobe frequency

Trigger frequency range: 120 times / minute ~6000 times / min.

Ambient light: <10000 Lux

Function:

Stroboscope with fast frequency flashing light. In stroboscopic instrument observation high speed rotation or movement of objects, by modulating stroboscope flashing frequency, and the measured object rotating or moving close to the speed of the object to be measured and synchronization, while at high speed, but it is the slow motion or relative rest. The persistence of vision, so that the people can be easily observed by high-speed operation object status.

Use:

Widely used in packaging and printing industry, can be detected by high speed printing process color, ink color matching, die cutting, punching, folding conditions; suitable for the textile industry, can detect the spindle rotation and loom weft cloth machine yarn; suitable for mechanical manufacturing industry, observe various rotor, gear machinery manufacturing movement; suitable in chemical, optical, shipbuilding and other industries.

Operating instructions:

Plug in the power, open the " switch ", a strobe light flashing, regulation of " frequency modulation " knob or frequency, at this time if the strobe frequency and target speed is too large, may choose to " high frequency conversion " switch, to achieve rapid adjustment of frequency, and the object synchronous speed, static images.

" Frequency modulation " knob clockwise, counterclockwise rotation. The angle of rotation of different modified speed is different, the pointer to a " 10" to the maximum value, and can not be tough to increase frequency.

Attention:

Power supply plug slot inserted upwardly, plug sleeve do not screw tight, avoid the internal connection loosening caused by short circuit.

When the stroboscope can not work normally, unplug the power line, check the insurance tube.

When the strobe drain flash may be lamp aging, please timely replacement lamp.

The lamp after the power supply is cut off, and may be charged, non professionals are not allowed to open.

Handle with care, do not fall into the water or solvent, not in hot and humid or high environmental pollution.
