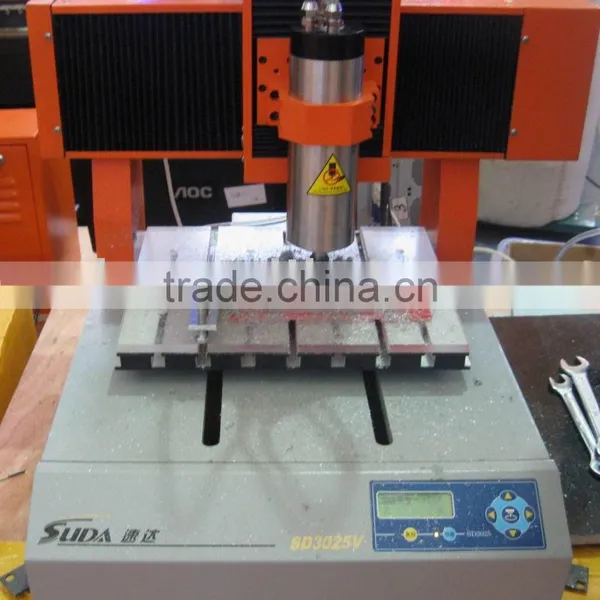

Sell SUDA Mini CNC engraving Router,Mini sign making machine --SD3025SV ( NEW MODLE)

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 50 Set / Sets per Month
Port shanghai
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Anhui, China	Brand Name:	SUDA ,Can OEM	Model Number:	SD3025SV
Main Axle Rotational Speed:	24000RPM	Feeding Height:	40MM	Milling Cutter Diameter:	3.175,6mm
Dimensions:	300250400mm working area

Packaging Details

non-wooden packages

Product Description

Specifications

Mini working size 300*250mm
Rolling ball screw from Germany
Durable and easy operation
Type3 software
CE certificate

Model	SD3025SV New modle from SHANGHAI EXHIBITION July
XYZ Guide	Rolling ball screw from Germany,X,Y,Z axis all configured with imported Linear rail,more processing accuracy .
Table size (cm)	30*25
X Y Z Guide	Rolling ball screw from Germany,X,Y,Z axis all configured with imported Linear rail,more processing accuracy .
XYZ movement (mm)	300 x 250 x 40
Spindle power	800W
Spindle speed (min/max)	6000 - 24000 U/Min.
Machine dimension (cm)	565459
Packing dimension (cm)	666469
Weight (kg)	95KG
Power consumption without spindle
Speed max.	0-70mm/s
Working speed max.	70mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	Aluminum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english
Software Compatible with	Win98/Win2000/XP
Spindle coolin system	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Interface	Transimt the file from USB flask disk directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	10 working days when we received all the payment by T/T

Can optional the different colour and two spindle motor
