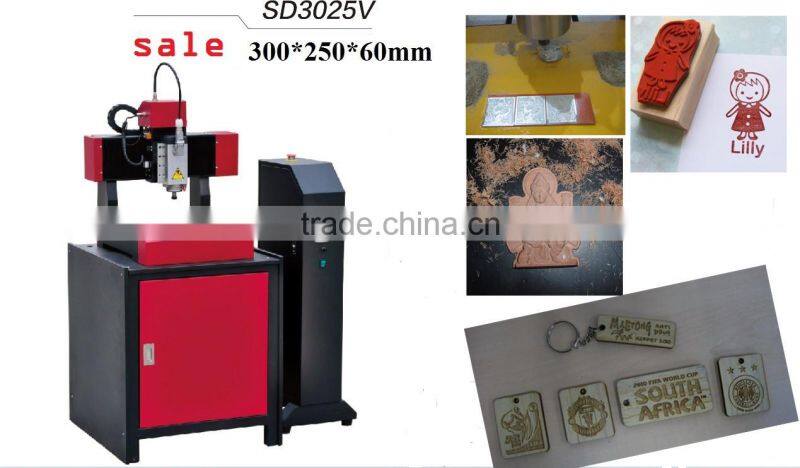

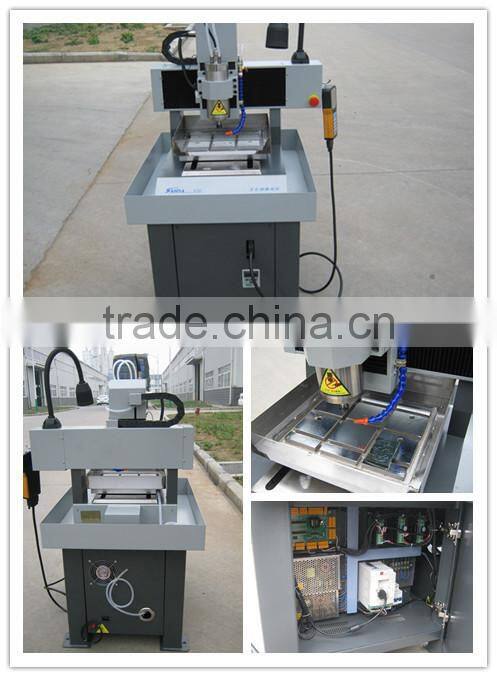

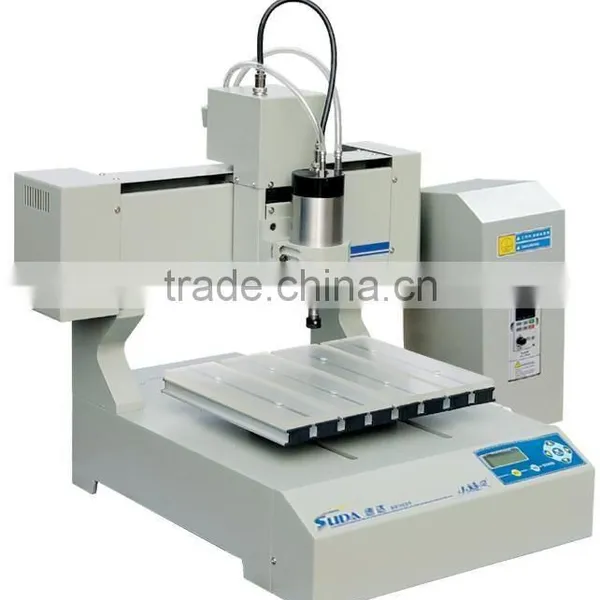

Suda Speedy MINI CNC ENGRAVING MACHINE --SD3025 Series

Name: Suda Speedy MINI CNC ENGRAVING MACHINE --SD3025 Series
Brand: SUDA
SKU: 144391472
Availability: InStock

Tongxing Technology Development Co., Ltd. Gold Verified Supplier

5Yrs

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

SUDA

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name SUDA

Model Number SD3025S,SD3025v,SD2616,SD3025y

After-sales Service Provided Engineers available to service machinery overseas

Specifications

configure with Rolling ball screw from Germany
Most suitable for wood and stampe working
Mini working size
Desktop router

Model	SD3025
XY Guide	Rolling ball screw from Germany
Table size (cm)	30*25
Z Guide	Rolling ball screw from Germany
XYZ movement (mm)	300 x 250 x 60
Spindle power	800W-1500w
Spindle speed (min/max)	6000 - 24000 U/Min.
Machine dimension (cm)	565459
Packing dimension (cm)	666469
Weight (kg)	90KG-195kg
Power consumption without spindle	more than 1000w
Speed max.	0-70mm/s
Working speed max.	70mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	Aluminum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english
Software Compatible with	Win98/Win2000/XP
Spindle coolin system	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Interface	Transimt the file from the computer directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	10 working days when we received all the payment by T/T
