laser machine jq9060

Name: laser machine jq9060
Brand: Jinqiang
Availability: InStock

FOB Price

USD $2,600 - $4,500 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Laser Type:	CO2	Applicable Material:	Acrylic, Leather, MDF, Paper, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness:	10mm	Cutting Area:	900*600mm	Cutting Speed:	0-25000mm/min
CNC or Not:	Yes	Cooling Mode:	Water Cooling	Control Software:	power cut
Graphic Format Supported:	AI, DST, PLT	Place of Origin:	Shandong, China	Brand Name:	Jinqiang
Model Number:	JQ9060	Certification:	CE, SGS	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

standard exported wood packing

Product Description

laser machine jq9060

Features of JQ9060 co2 laser cutting machine:

1. Configure higher power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.

Technical Parameter

Item / Model	JQ9060 co2 laser engraving machine
Cutting area	900 x 600mm
Laser power	60W/80W
Laser type	CO2 sealed laser tube,water-cooled,10.6um
Engraving speed	0-60000mm/min
Laser Output	1-100%software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	220V/50HZ , 110V/60HZ
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1.0 x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	TAJIMA, CorelDraw, Photoshop, AutoCAD
Driving system	2 phases stepper motor
Cooling mode	Water-cooling and protection system
Equipment Dimensions	1450x1100x1070mm
Net Weight:	230kg
Shipping Dimensions	1500 x 1110 x 1300mm
Optional Spare Parts	Up-down clump, Rotary System, Honeycomb table
Recommended Spare Parts	Laser Tube and Lens

Application Field

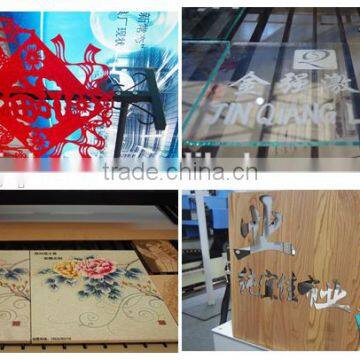

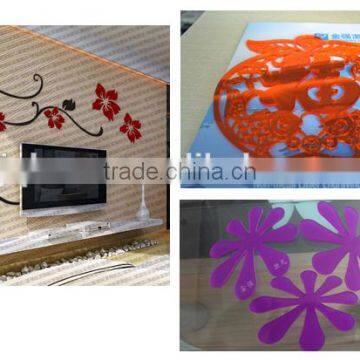

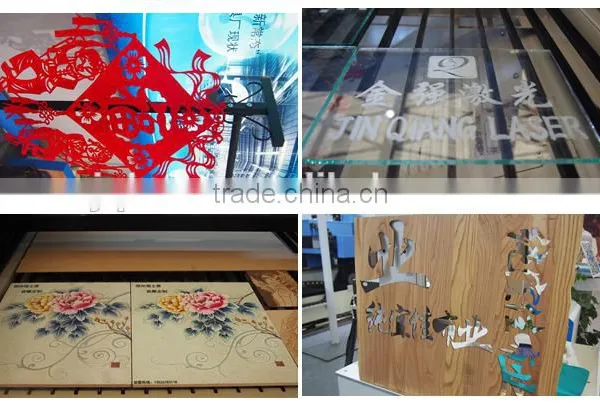

Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials

Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

The warranty after-sale service

a) Guarantee for the whole machine: 2 years

b) Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours

c) International after service department, and our engineers can speak English well, which make communication easy

d) Free training, free maintenance and free technical support within warranty period

e) We offer life-long free service in technical upgrading.

As a professional manufacturer we can supply different model according

to your different materials. So you also can tell me

1. What materials do you need to process? non metal material?

2. What is the size and thickness of each materials you want to cut?

3. What is your business scope? Are you an end user or distributor?

We will be very happy to help you in any way we can.

All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.
