Home > Products > ABC strain Clamps > Wanxie NLY compression connecting type wedge strain clamp Electric Power Construction Resistant clip

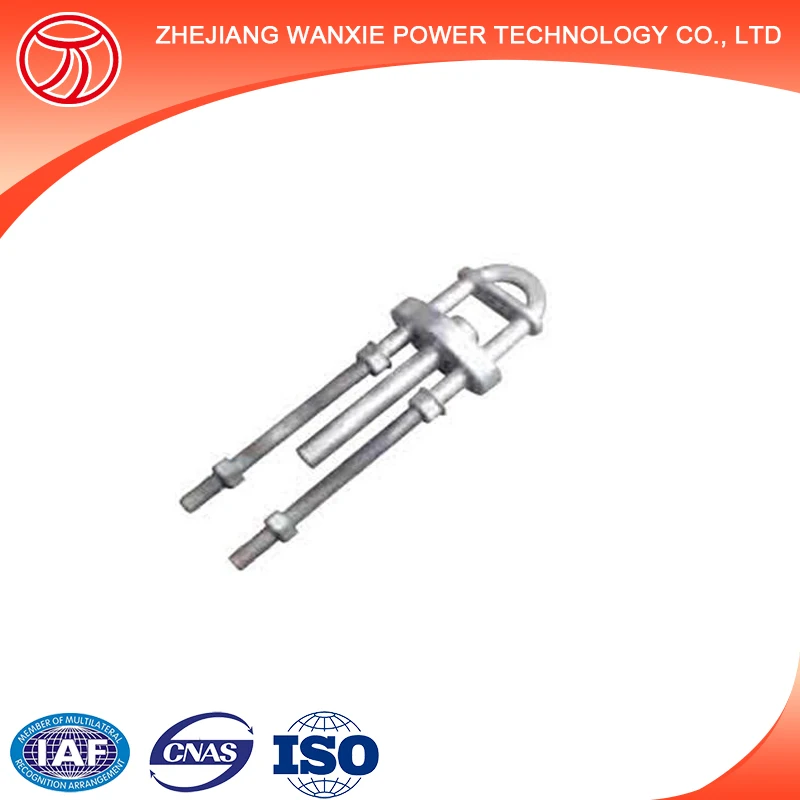

Wanxie NLY compression connecting type wedge strain clamp Electric Power Construction Resistant clip
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C Credit Card PayPal Other Cash
- 10 days
-
Wanxie NUT Series WEDGE TYPE clamp ADJUSTABLE STRAIN CLAMPS
-
Wanxie FDZ series combined type stockbridge damper Aerial line vibration damper
-
Wanxie FR series stockbridge dampers for Transmission Line
-
Wanxie JK series guy clips steel wire clip metal cable clamp
-
Wanxie U type bolt cable clips steel wire clip metal cable clamp
-
Wanxie U-type guy clip steel wire clamp U clamp connector
Product Details
| Brand Name: | Wanxie | Place of Origin: | China | Model Number: | NLY |
| Material: | Aluminium | Usage: | Heavy Duty | Standard or Nonstandard: | Standard |
| Structure: | Suspension Clamp |
Product Description

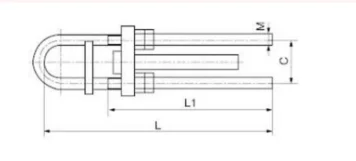

| Type | Applicable conductor diameter | Main Dimensions(mm) | Failure load (KN) | Weight(KG) | |||
| C | M | H | R | ||||
| NLY-50 | 1X7-9.0-140-GB1200-75 | 72 | 18 | 320 | 230 | 65.1 | 3.4 |
| NLY-120 | 1X19-14-155-GB1200-75 | 94 | 24 | 556 | 400 | 167.6 | 8.4 |
| NLY-135 | 1X19-15-155-GB1200-75 | 94 | 24 | 556 | 400 | 188.5 | 4.9 |
| NLY-150 | 1X19-16-155-GB1200-75 | 104 | 27 | 556 | 400 | 209.5 | 11 |
| NLY-165 | 1X37-16.8-155-GB1200-75 | 104 | 27 | 556 | 400 | 230.4 | 12.2 |
| NLY-180 | 1X37-17.5-155-GB1200-75 | 114 | 30 | 610 | 450 | 251.4 | 15.6 |
| NLY-195 | 1X37-18.2-155-GB1200-75 | 114 | 30 | 610 | 460 | 273.3 | 16.2 |
| NLY-265 | 1X37-21-1570-GB1200-75 | 128 | 36 | 670 | 440 | 367 | 26.6 |
| NLY-100E | 1X19-13-1570-GB1200-88 | 88 | 22 | 490 | 300 | 151 | 6.3 |
| NLY-125E | 1X19-14.5-1570-GB1200-88 | 94 | 24 | 580 | 380 | 188 | 9.1 |
| NLY-150E | 1X19-16-1570-GB1200-88 | 104 | 27 | 610 | 400 | 228 | 12 |
| NLY-180E | 1X19-17.5-1570-GB1200-88 | 114 | 30 | 610 | 420 | 273 | 15.6 |
| NLY-240E | 1X19-20-1570-GB1200-88 | 128 | 36 | 670 | 440 | 357 | 22.6 |
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
