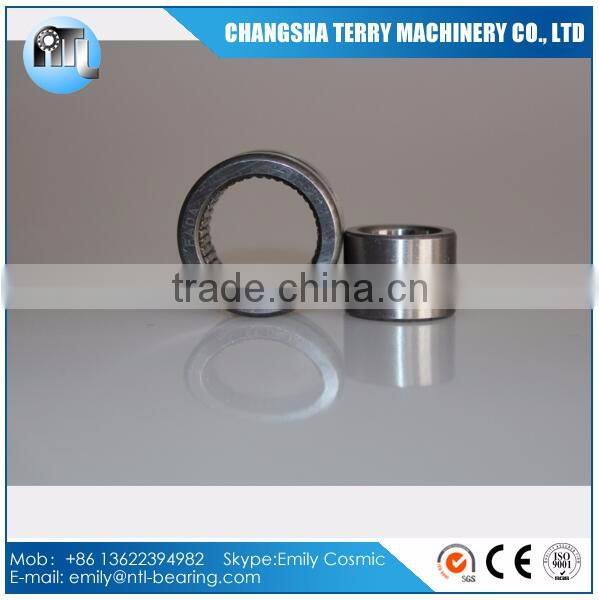

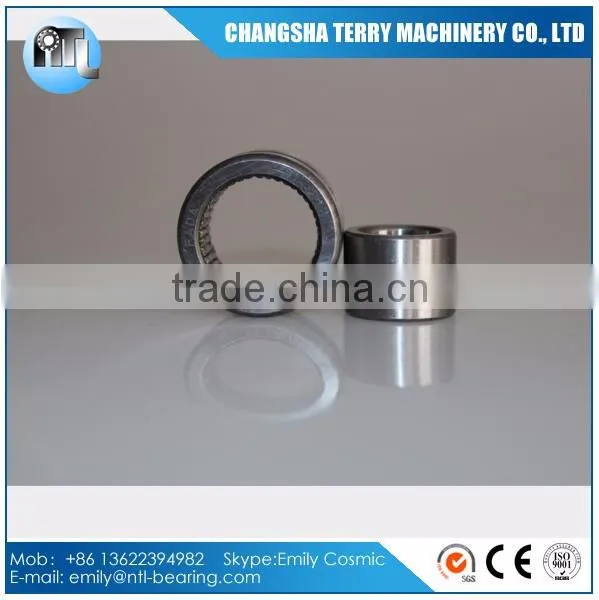

HK0709 Spring Steel One Way Clutch Needle Bearing
- 100000 Piece / Pieces per Month
- Shanghai / Ningbo
- T/T D/P D/A Credit Card
You May Like
-
BCH2020 professional OEM closed end drawn cup needle roller bearing
-
NKX10TN Budget Needle Roller Thrust Ball Bearing Without Cover
-
Stainless Steel Thrust Needle Bearing AXK2542
-
High quality thrust needle roller bearing AXK1226 with 2 washers
-
Flat Thrust Roller Bearings AXK3047+2RS Thrust Roller Assembly
-
AXK6590 Needle Roller Cage with 2 AS6590 Washers 65x90x5mm
Product Details
Brand Name | NTL | Bore Size | 0, 7 | |
Outside Diameter | 0, 11 | Model Number | HK0709 | |
Precision Rating | high precision | Seals Type | Sealed | |
Number of Row | Single Row | Place of Origin | Zhejiang, China |
Product Description
HK0709 Spring Steel One Way Clutch Needle Bearing
The needle roller bearings are roller bearings with cylindrical rollers that are long and thin in relation to their diameter. In spite of their low cross section, needle roller bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.
Feature
- Drawn cup needle roller bearing for applications with high dynamic loads
- Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
- Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise
- Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
Application
Automotive transmissions, air-conditioner compressors, bulldozer blades, overhead traveling cranes, gearboxes, machine tool spindles, copying machines and so on.
Contact information
Changsha Terry Machinery Co.,Ltd
Attn: Emily
E-mail: emily @ntl-bearing.com
Skype: Emily Cosmic
Mobile: 0731-85782665
Datasheet
Bearing No. | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) | ||||
Fw | D | C | Cr | Cor | Oil | |||
HK0408TN | 4 | 8 | 8 | 1540 | 1070 | 4000 | 1.6 | |
HK0509 | 5 | 9 | 9 | 2200 | 1790 | 36000 | 2 | |
HK05X09X08 | 5 | 9 | 8 | 2200 | 1790 | 36000 | 1.9 | |
HK0607 | 6 | 10 | 7 | 1600 | 1400 | 30000 | 1.8 | |
HK0608 | 6 | 10 | 8 | 1830 | 1550 | 32000 | 2.1 | |
HK0609 | 6 | 10 | 9 | 2650 | 2400 | 3000 | 2.2 | |
HK0611 | 6 | 10 | 11 | 1700 | 1500 | 29000 | 2.3 | |
HK06X12X08 | 6 | 12 | 8 | 2230 | 2010 | 33000 | 2.5 | |
HK0708 | 7 | 11 | 8 | 2800 | 2150 | 27000 | 2.2 | |
HK0709 | 7 | 11 | 9 | 2800 | 2150 | 27000 | 2.3 | |
HK07X12X08 | 7 | 12 | 8 | 3300 | 3220 | 37000 | 2.2 | |
HK07X12X09 | 7 | 12 | 9 | 3400 | 3150 | 37000 | 2.4 | |
HK0808 | 8 | 12 | 8 | 2550 | 2400 | 21000 | 2.7 | |
HK0810 | 8 | 12 | 10 | 3700 | 3450 | 21000 | 3 | |
HK08X14X10 | 8 | 14 | 10 | 3800 | 3950 | 25000 | 5.35 | |
HK08X14X12 | 8 | 14 | 12 | 4100 | 4320 | 25000 | 6.6 | |
HK0908 | 9 | 13 | 8 | 3650 | 4050 | 25000 | 3 | |
HK0910 | 9 | 13 | 10 | 4050 | 4250 | 25000 | 4 | |
HK0911 | 9 | 13 | 11 | 4300 | 4700 | 25000 | 4.1 | |
HK0912 | 9 | 13 | 12 | 5000 | 6000 | 25000 | 4.6 | |
HK09X15X10 | 9 | 15 | 10 | 5300 | 6300 | 25000 | 5.6 | |
HK1010 | 10 | 14 | 10 | 3900 | 4800 | 19000 | 4.1 | |
HK1012 | 10 | 14 | 12 | 5000 | 6300 | 19000 | 4.8 | |
HK1015 | 10 | 14 | 15 | 6700 | 7800 | 19000 | 6 |
Welcome to enquire for more details!
