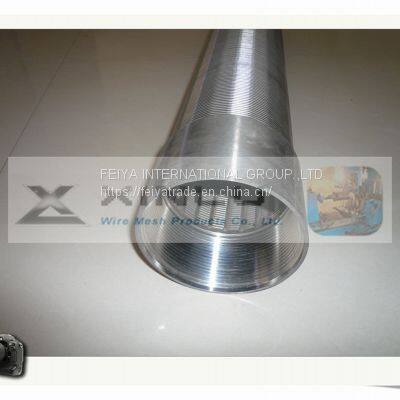

Johnson Type Mesh Screen/Water Well Screen
- 10000000 Piece / Pieces per Month
- Tianjin port, China
- T/T L/C D/P D/A
- 7 days
-
Stainless Steel 304/316 Water Well Wire Screen/Johnson Screen for Sand Control
-
perfect roundness water well screen
-
Stainless Steel No magnetic Wedge Wire Water Well Screen
-
Green colour PVC coated wire ties, PVC coated double loop wire ties
-
stainless steel lateral arms, lateral screens, candle filter for resin separation / cation regeneration vessel
-
spiral screen pipe
Product Details
| Brand Name: | feiyatrade, xinlu wire mesh, xinlu wedge wire screen | Place of Origin: | China | Material: | Other, ss304, 304L, 316,316L.201,205,321, Q235,Q195, 2205,904L,etc |
| Length: | 1-6m | Thickness: | 5-10mm | Type: | Filter Cylinder |
| Width: | DN19-1000mm | Usage: | Liquid Filter | Filter Rating: | 0.05-30mm |
| Hole Shape: | Square |
Product Description
Specification of Johnson Wedge Wire Water Well Filter Stainless Steel Screen
v wedge wire wrapped well screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding. It is used in water well, oil well, gas wells and for environmental well completions.
Material:
generally of stainless steel 304, 304L,316, 316L, 321 etc. We also produce special material according to the customer request.
Characteristics:
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Technical parameter:
1) wire size: 0.75×1.5mm, 1×2mm, 2X3mm, 2.3×3mm, 3×5mm
2) Slot width: 0.5mm,1.0mm,
3) screen diameter: 25mm, 33mm, 37mm, 40mm, 60mm, 177mm,219mm,273mm,323mm
4) screen length: 5.8m,11.9m.
Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request | |
Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 25mm to 1200mm. |

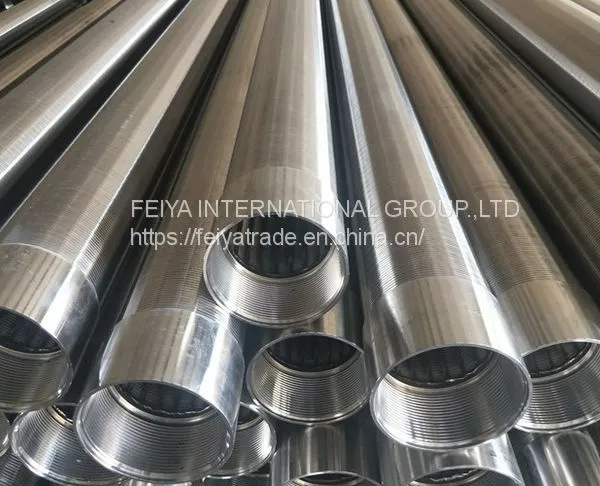

End connection | Plain beveled ends, flanged or threaded couplings |
End connection:
Threaded couplings, Flanged
