Home > Products > Separable Connector > TGZ-35/600 600A 35KV Apparatus Bushing,TGZ-35-600 Cable Accessories

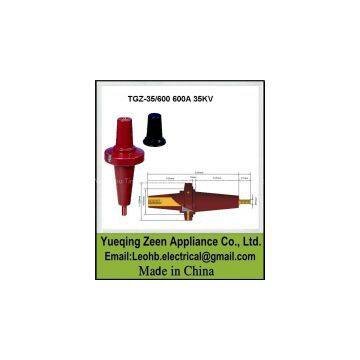

TGZ-35/600 600A 35KV Apparatus Bushing,TGZ-35-600 Cable Accessories
USD $1 - $1
/ Meter
100 Meters(Min.Order)
- 10000 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
ZT-24/250 250A 24KV Deadbreak Elbow Connector,250 A 24 KV Class Deadbreak Elbow Connector
-
TGZ-24/250 250A 24KV Apparatus Bushing,TGZ-24/250 epoxy transformer bushing,Apparatus Bushing TGZ-24/250
-
JYM15/25/35-200 Insulated Protective Cap,200A,35kV Insulated Protective Cap,200A Insulated Protective Cap,
-
STT15/35-200 25kv 35kv Loadbreak Rotatable,200 A 15 kV Class Loadbreak Rotatable,Loadbreak Rotatable
-
TGZ-15/200 15 25kv Bushing,Bushing well, up to 35kV
-
DTT-15/200 Loadbreak Bushing Insert,200A,15kV Loadbreak Bushing Insert
Product Details
| Brand Name | HB | Place of Origin | China | |
| Model Number | TGZ-35/600 |
Product Description
The material is a kind of epoxy resin with good mechanical and electrical properties
600A 35kV casing seat, cable connector provides the interface for the 600A, the main change for the American box, outdoor ring network switch cabinets and other equipment. Installed in the American box changed the side and high voltage winding connection, installed in the outdoor ring 600A outlet side of the cabinet to do. With shielded cable connector bolt connection.
The material is a kind of epoxy resin with good mechanical and electrical performance.
| The main parameters | KV |
| Rated voltage | 35 |
| Maximum phase voltage | 40.5 |
| The maximum relative voltage | 21.1 |
| 1 minute power frequency withstand voltage | 117 |
| 15 minutes to DC voltage | 103 |
| Lightning impulse withstand voltage | 150 |
| Minimum corona inception voltage | 26 |
| The main parameters | Parameter |
| Rated Current | 600A |
| 24-hour overload | 1000A |
| Short-term withstand current | 40KA/0.2S |
