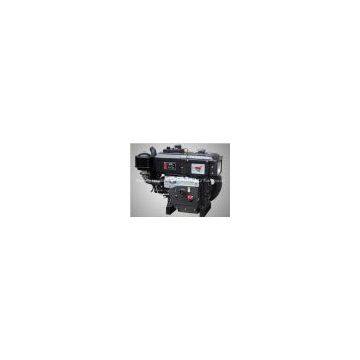

H14

Heavy power,good quality

                                               H14                                           H18                             H20
TYPE                                    Single-cylinder,                Single-cylinder,       Single-cylinder,
                                              air-cooling,                        air-cooling,               air-cooling,
                                              4-stoke,                             4-stoke,                     4-stoke,
                                              horizontal                          horizontal                   horizontal
chamber                             direct-injection                  direct-injection         direct-injection
bore(mm)                           95                                        100                             105
stroke(mm)                        98                                        120                             120
Displ(L)                               0.694                                   0.942                         1.039
rated power                        9.7/2400                             12.7/2200                 14.7/2300
/speed
Max torque                          ≥43.2                                    ≥61.7                         ≥68.4
(N.m)
speed (max torque)          ≤1920                                   ≤1760                       ≤1840
(r/min)
fuel consump                     ≤245                                     ≤235                          ≤235
(g/kw.h)
ilding  (r/min)                       ≤800                                    ≤800                           ≤800
compression                      19                                         17                                17
ratio
starting type                         Hand cranking                   Hand cranking          Hand cranking
                                               or electronic                       or electronic               or electronic
Net weight                           102                                       145                              150
(Kg)
Dimension(mm)                730×390×570                     836×410×640           836×410×664


                                                   H23                                      H25                             H28
TYPE                                  Single-cylinder,                Single-cylinder,         Single-cylinder,
                                            air-cooling,                        air-cooling,                air-cooling,
                                            4-stoke,                              4-stoke,                     4-stoke,
                                            horizontal                           horizontal                  horizontal
chamber                           direct-injection                  direct-injection         direct-injection
bore(mm)                         115                                      115                            125
stroke(mm)                      115                                      120                            120
Displ(L)                             1.194                                   1.246                         1.473
rated power                      17/2300                              18/2300                     20/2200
/speed
Max torque                        ≥79                                       ≥83.7                         ≥97.2
(N.m)
speed (max torque)        ≤1840                                  ≤1840                        ≤1760
(r/min)
fuel consump                   ≤235                                    ≤235                           ≤240
(g/kw.h)
ilding  (r/min)                    ≤800                                    ≤800                           ≤800
compression                   17                                         17                                17
ratio
starting type                     Hand cranking                    Hand cranking         Hand cranking
                                           or electronic                        or electronic              or electronic
Net weight                       185                                       185                               208
(Kg)
Dimension(mm)             875×450×688                    875×450×688           916×475×709



                                                     T20                                      T25                             T35
TYPE                                    Single-cylinder,                Single-cylinder,         Single-cylinder,
                                              air-cooling,                        air-cooling,                air-cooling,
                                              4-stoke,                              4-stoke,                      4-stoke,
                                              horizontal                           horizontal                   horizontal
chamber                             direct-injection                   direct-injection         direct-injection
bore(mm)                           105                                       115                             130
stroke(mm)                        120                                       120                             125
Displ(L)                               1.039                                    1.246                         1.659
rated power                        14.7/2300                            18/2300                     24/2300
/speed
Max torque                          ≥68.4                                     ≥83.7                         ≥111.6
(N.m)
speed (max torque)          ≤1840                                   ≤1840                         ≤1840
(r/min)
fuel consump                     ≤244.8                                  ≤244.8                        ≤244.8
(g/kw.h)
ilding  (r/min)                       ≤800                                     ≤800                           ≤800
compression                       17                                         17                                17
ratio
starting type                         Hand cranking                    Hand cranking          Hand cranking
                                               or electronic                        or electronic              or electronic
Net weight                           150                                        185                              208
(Kg)
Dimension(mm)                 836×410×664                     858×450×699           916×475×709
