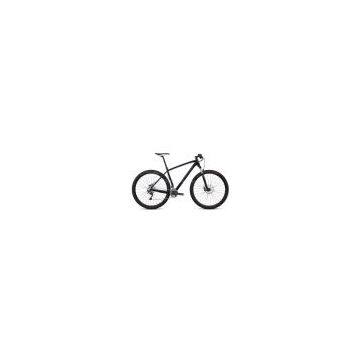

2013 Specialized Stumpjumper Expert Carbon 29 Mountain Bike

SPECIFICATION :

FRAME
FACT 8m carbon with 12K finish, 29" geometry, FACT IS construction, tapered HT, carbon PF30 BB, hollow carbon dropouts, replaceable alloy derailleur hanger
REAR SHOCK

FORK
RockShox Sid 29 Brain, inertia valve damper, Solo air spring, alloy tapered crown/steerer, Brain Fade and rebound adj., QR, 15.5": 80mm, 17.5/19/21": 90mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, 6-degree rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm
HANDLEBARS
Specialized XC flat, 2014 butted alloy, 680mm wide, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE
Magura MT6, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor
REAR BRAKE
Magura MT6, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor
BRAKE LEVERS
Magura MT6, carbon master cylinder, alloy lever blade, hollow lever pivot, reach adj.
FRONT DERAILLEUR
SRAM X7, 10-speed, 34.9 clamp, top pull
REAR DERAILLEUR
Shimano XTR Shadow Plus, 10-speed, SGS long cage
SHIFT LEVERS
Shimano SLX 10-speed, trigger
CASSETTE
SRAM PG-1050, 10-speed, 11-36
CHAIN
KMC X10, nickel plate, reusable Missing Link
CRANKSET
Custom SRAM carbon S-2200, 10-speed XC double, PF30 spindle, removable spider, 15.5": 170mm, Others: 175mm
CHAINRINGS

BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
RIMS
Roval Control 29, alloy disc, 24mm wide, 32h
FRONT HUB
Roval Control 29, OS28 end caps, QR, 32h
REAR HUB
Roval Control 29, DT Swiss alloy cassette body, QR, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
S-Works Fast Trak, 2Bliss Ready, 120 TPI, aramid bead, 29x2.0"
REAR TIRE
Specialized Fast Trak Control, 2Bliss Ready, 60 TPI, aramid bead, 29x2.0"
INNER TUBES
Ultralight presta
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5" 350mm; Others: 400mm
SEAT BINDER
Specialized 7050 hard anodized alloy, 32.6mm, single bolt
