Home > Products > HD CCTV Cameras > 120dB 690 HTVL - E HD CCTV cameras SW - 680 0.1 lux min illumination
120dB 690 HTVL - E HD CCTV cameras SW - 680 0.1 lux min illumination
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
SONY 600TVL high resolution 860Nm IR LED, 9-18V wide range hd cctv camera equipment
-
SONY Super Had II CCD 600TVL, 1 x IR array III, 50M IR, home security hd cctv cameras
-
Black HD CCTV Camera Day Indoor Dome Camera CEE-C035
-
High definition Weather - Proof IR dome HD CCTV cameras SW-560C
-
High quality 3D - DNR 690 HTVL HD CCTV Cameras SW - 550C IR - CUT
-
High resolution high rigidity 690HTVL - E HD CCTV Cameras SW-516C with CE
Product Details
| Brand Name | HAOMING | Place of Origin | China | |
Product Description
Certification:CE

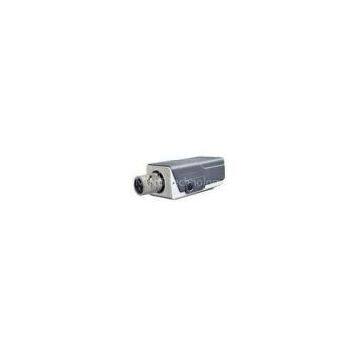

120dB 690 HTVL - E HD CCTV cameras SW - 680 0.1 lux min illumination
SW-680 Series are high definition box cameras, adopted PIXIM latest \"Seawolf\" solution, WDR range up to 120dB, 690 HTVL-E, have key-press OSD , RS-485 and newest stylish design.
Features:
1. PIXIM 1/3 Seawolf Solution；
2. 690HTVL-E Resolution；
3. 120dB Ultra WDR range ；
4. OSD Menu；
5. 3D-DNR;
6. AC 24V / 12V DC power design;
Specification:
| Model No. | SW-680-A | SW-680-B | |
| Sensor | Sensor | 1/3-inch DPS Sensor | |
| Menu Operation | Video Format | PAL/NTSC | |
| Resolution | 690 HTVL Effective* | ||
| Mini. Illumination | 0.1 lux min illumination (f/1.2, 50 IRE, 30 fps, CMY) | ||
| S/N Ratio | up to 50dB max (Y signal, AGC off) | ||
| Ess Modes | 1x~32 x | ||
| AGC | Normal, low, high | ||
| WDR | 120 db(max) | ||
| BLC | ON/OFF | ||
| Iris Control | Electronic iris/Auto iris lens (DC drive) | ||
| Extended Slow Shutter | 2x / 4x / 8x / 16x / 32x | ||
| Noise Reduction | 3D Motion Adaptive | ||
| Digital Zoom | 8x | ||
| RS-485 | √ | ---- | |
| White Balance | Mode: Automatic Tracking White Balance (ATW) | ||
| Automatic: (Auto White Balance) 2200~10000K° | |||
| Low Light Mode | Low speed shutter, AGC, Sense up B/W Low Speed Shutter .Image | ||
| Day/Night | OFF, External Control, Auto; ON | ||
| Sync Mode | Internal synchronous | ||
| Power | Voltage | DC12V/AC24V | 12V DC |
| Current | ≤150mA | ||
| Vide output | 1.0Vp-p/75 Ω Composite | ||
| Operating Temp. | -10℃～50℃ | ||
| Storage Temp. | -20℃～60℃ | ||
| Dimension | 136*56*70mm | ||
| Weight | 450g |
