Home > Products > Hydraulic Hose > SAE R2 Wire Braid Rubber Hose

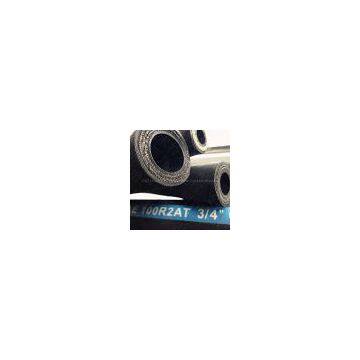

SAE R2 Wire Braid Rubber Hose
- 200000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
| Brand Name: | CXT | Place of Origin: | China | Model Number: | SAE R2 |
Product Description
R2 Two layer Wire Braid Hydraulic Hose
1.Tube:
Oil resistant synthetic rubber
2.Reinforcement:
One or two high tensile steel wire braid
3.Cover:
Abrasion and weather resistant synthetic rubber
4.Temperature range:
-40 to +100
5. Certification: ISO9001- 2000
6. Packing: As customers' requirement
7. Delivery time: Within 10 - 15 days
8. Payment: T/T.L/C
Specification:
1.Hose ID: 1/2inch; 12.7mm
2.Wire OD: 19.8mm
3.Hose OD: 22.2mm
4.Working pressure: 27.6Mpa;4000Psi
5.Burst pressure: 110Mpa;15720Psi
6.Minimum bend radius: 180mm
7.Weight: 0.59kg/m
