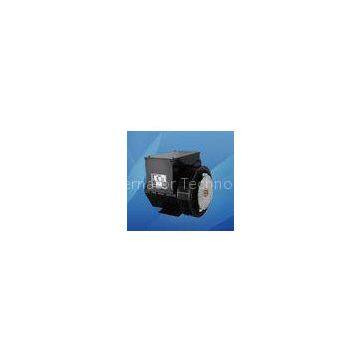

110V - 690V Three Phase AC Alternator 10kw 12.5kva for Generator Set With CE & ISO

Delivery Time:Within 7days to 15 days after getting the deposit L/C or T/T
Certification:CE ISO

110V - 690V Three Phase AC Alternator 10kw 12.5kva for generator set with CE & ISO

Detailed Product Description

AC Three Phase Output Type FLD AC Alternator 10kw

Quick Detail:

Self-exciter with SX460  Insulation class H 3 Phase winding 12 wires 2/3 pitch Single bearing or double bearing arrangement IP23 enclosure Prime mover is diesel or engine PF0.8 / 1.0

Description:

Brushless AC generator 164 series is available in single or double bearing applications,self-excited Automatic Voltage Regulator,adaption adapters offered to SAE 2,3 ,4 ,5 and 6.We have in stock with very competitive pricing and best lead times.Please double check with us,we could offer exactly shipping cost for you.In order to make the business simple,quickly ,convenient for you.We could offer competitive price for shipping with any purchase of a Farrand AC generator end from us.

Purchasing a FLD 164 Series from us will include the following specification at no additional cost:

· 4 Poles

· Single Phase or three phase

· power factor 0.8 or 1.0

· 1500rpm or 1800rpm

· 50hz or 60hz

· Available voltage from 110V 220V to 690v

· 4 lead alternator

· Class H insulation

· IP23 enclosure

· High efficiency

· SX460 Automatic Voltage Regulator

· MX341 Automatic Voltage Regulator with PMG

Below you will find all the specific models associated with the FLD164 series.If you have any questions or need pricing please contact us.

For 3 Phase 4 Pole alternators

Place of Origin	WUXI CHINA	Brand Name	FARRAND	Model Number	FLD164C
Output Type	AC Three Phase	Speed	1500rpm	Frequency	50hz
Rated Power	10 kw/12.5kva	Rated Voltage	110V-690V	Warranty	12 MONTHS
Color	As your request	Label service	available	OEM series	available
Wire pitch	2/3 pitch design	Pretection class	IP23	Insulation class	H
Tem raise	180 degree	Material	100% copper wire

The advantage of our material:

The rotors and stators with 100% copper wire. The enamelled wire is Essex by America. The silicon steel sheet we use is the products of Wugang Brand,800 Series.which is the most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small. The silicon steel sheet we use is the products of Wugang Brand,800 Series.which is the most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small. The rope of best nylon to be used in all the rotors and stators.We promise the security of our products,the phenomenon of ribbon burst will never happen. The TWB bearings are useing in our products. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products should be tested by specialized Test Room.

Features:

1. Optional permanent magnetic alternator , provide invariable excitation in any situation.

2. Easy to be connected with power network or other alternators. Standard 2/3pitch windings avoid excessive neutral current.

3. Dynamically balanced rotors, with single or two sealed ball bearings.

4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.

5. Wide range of flange adaptor and single bearing coupling disc.

6. Built to conform to all leading industrial standards.

Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At High Five, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Information for AVR:

​ We have many types of AVR,such us SX460, SX440, SX421, MX341, MX321,etc.

· The main stator provides power for excitation of the exciter field via AVR.

· Output power of exciter\'s rotor is input to that of mains through 3-phase full wave rectifier.

· Connected with piezore
