Home > Products > Barrier Terminal Block > 15A 10 x 3 Pin Barrier Terminal Block , High Voltage Wiring Block Connectors

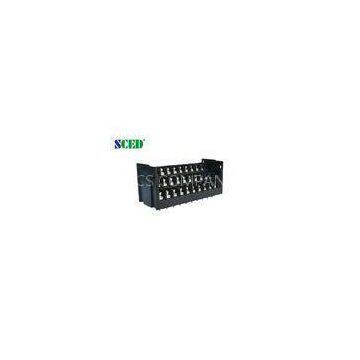

15A 10 x 3 Pin Barrier Terminal Block , High Voltage Wiring Block Connectors
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Grey Double Level Terminal Block Barrier Connector 300V 7.62mm Pitch
-
High Current Power Terminal Blocks , 20A Rail Mounted Terminal Blocks Pitch 9.50mm
-
600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available
-
5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block
-
AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A
-
8.2mm 600V 50A AWG 26 - 8 Din Rail Mounted Terminal Blocks for Electric Lighting
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TB762-03 |
Product Description
Certification:UL, CE
15A 10 x 3 Pin Barrier Terminal Block , High Voltage Wiring Block Connectors
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; □Double levels; ■Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
300/10 |
|
|
Wire Range AWG |
14-22 |
14-22 |
|
|
IEC Technical Data |
|||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
