CAD automatic layout mask high speed cutting machine
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
60T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/rotary die cutting machine
-
40T Precise 4-column Hydraulic Plane Cutting Machine/Die Cutting Machine/Punching machine
-
80T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/die cutting machine scrapbooking
-
60T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/lucerne cutting machine
-
25T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/foam cutting machine
-
40T Precise 4-column Hydraulic Plane Cutting Machine/foam insert cutting machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GSB | |
| Model Number | XCLP3-25 | After-sales Service Provided | No overseas service provided |
Product Description

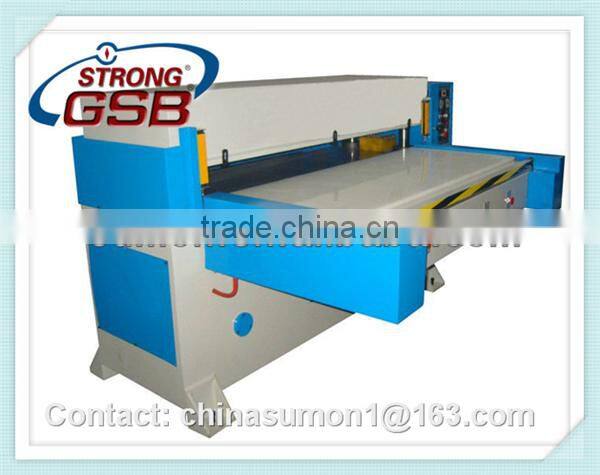

25T Precise Hydraulic Four-column Plane Cutting Machine
1. The machine is widely applicable for cutting of nonmetal materials in various
industries by cutting die.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which
can guarantee that the cutting force at every cutting position is same.
3. With special setting mechanism, and equipped with cutting die and cutting force
setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the cutting die
, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision
and prolongs service life of machine.
Model | XCLP3-25 |
Maximum cutting force | 25Tons |
Distance from upper pressing board to worktable | 50-150mm |
Cutting area | 1600×550mm / 1250×550mm |
Motor power | 2.2KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Machine weight (approximate) | 1600Kg / 1500Kg |
Packing size | 2450×1200×1550mm |
REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER,FOR EXAMPLE,THE CUTTING FORCE,CUTTING AREA,FEEDING DEVICE,SPECIAL STROKE ETC.
