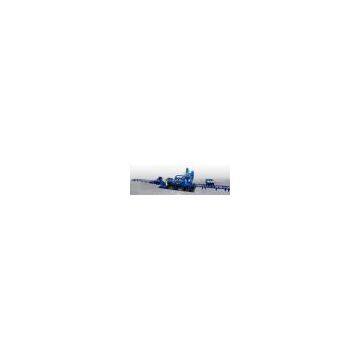

Shot Blasting Machine-Q69 Series for Steel Profiles

Shot Blasting Machine-Q69 Series for Steel Profiles
The series of Q69 steel sheet shot blasting pre-treament line are mainly consist of warm-up, shot blasting and spray painting and drying process.It applies to shipping, car, motorcycle,bridge, machine ect which is in the line of steel board, section and structure casting to wipe of surface rusting and paiting art.

sequence         Q698    Q6912   Q6915   Q6920   Q6925   Q6930    Q6940
number
1 The effective
 cleaning width mm  800 1200   1500    2000    2500    3000    4000
2   The room feed-in
 Size mm     1000×400 1400×400 1700×400 2200×400 2700×800 3200×800 4200×400
3 The length of cleaning
 Workpiece mm 1200~12000 1200~1600 1200~12000 1200~12000 3000~12000 2400~12000 4500-18000
4    the speed of wheel
 conveyer (stepless
speed variation )m/min 0.5~4 0.5~4 0.5~4 0.5~4 0.5~4    0.5~4     0.5-4
5   the thickness of cleaning
 steel sheet mm     3~60 3~60 1.5~60  3~60 3~60  3~110    4.5-100
6 the section steel
 specification Φ16-28 [≤20#<≤16# [≤20#<≤16# [≤20#<≤16# 60×8~300×1000
7 the quantity of shot
 blasting kg/min 4×180 4×250 4×250 6×250 6×250   6×360    8×360
8 the first enclosed
  quantity kg      4000  4000  4000  4500  4500    8000    11000
9   roll brush adjusting height/mm200  200    350   450   600     850     900
10 airness capacity m3/h 22000 17560   19000   19550  27758    28050   38000
 11  exterior size mm 25017×4500×9015 12180×4250×7095 15200×5370×6797 30650×6850×9095 31200×8070×7500 44042×6385×7758 45000×7830×11117
12   total power
(except for dust cleaning) kw 90     78.3    113.5   156.6   204.8    224.55  293.6
