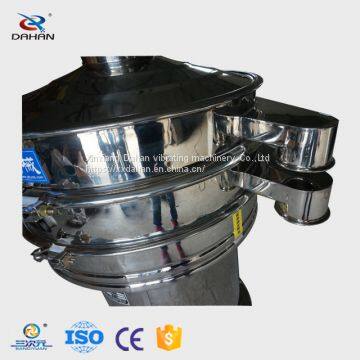

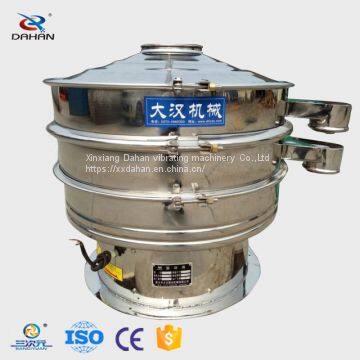

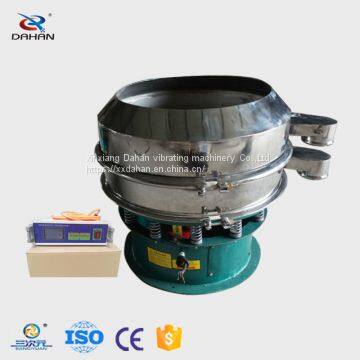

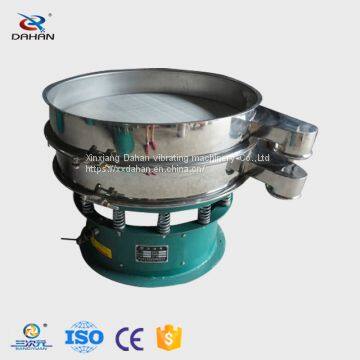

Powder ultrasonic sieve 220V

Introduction
DHC-3A ultrasonic vibrating screen is 220 v,50 hz power into high frequency electric energy of 38 KHZ,input ultrasonic transducer,turning it into 38 KHZ mechanical vibration,so as to achieve efficient screening and purpose of the network,makes the ultra micro powder screening for easy.
Ultrasonic vibrating screen screening system is a kind of simple and practical,reliable screening system,it is currently the most effective solution of mesh plug and domestic screen of a major technological breakthrough.

Features:
1.at high precision, while the high-mesh sieve to control the particle size range is narrow.
2.can be single and multi-use set of intelligent ultrasonic generator while using three transducers.
3.thoroughly screen self-cleaning function: greater than 500 mesh sieve, no clogging, no screening efficiency decay.
4. real solution to the strong absorption, easy reunion, high static, high-precision, high-density, light specific gravity screening problems.
5. characteristics of the material being processed to ensure constant.
6.  screening accuracy can be increased 1-70%, the yield can be increased from 0.5 to 10 times.

parameters
The biggest ultrasonic power output:200W
Output rated voltage:900V
Maximum Output Current:1A(limiting current)
Fuse:100-120V: 2*2.5A slo blo 200-240V: 2*1.25A slo blo
Protection class:IP65
Pollution degree:2
Environment temperature:-10-35°C

Pls provide the following information for us
1. material name, the density(kg/m3), water content(%).
2. the necessary capacity you required(per hour)
3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel, the other parts is carbon steel.
4. the dimension of the machine can be designed for you.
5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained.
6. How many layers you need??
7. Pls inform the voltage&frequency in your city.

If you are interested in our products,you can contact me.
