CS110 2014 new products in machinery for mattress making machine

Specifications

(CS110) Industrial quilting machine for mattresses
Use for Bedspreads ,Mattress panel ,
Sofa protectors .

  Industrial quilting machine for mattresses

 Main application and performances:



It is  widely use for Bedspreads ,air-condition quilt,mattress panel,matress protectors,sofa cushions and sofa protectors .



 1. Multi - span independent pattern (360°, 180° patterns are available)

2. Automatic pause in the case that the upper thread or the bottom thread breaks, automatic needle - lifting; and computerized speed adjustment.

3. Available features such as high rigidity, high speed of running, low vibration, low noise, and no collision.

4. Computerized control system of new generation to ensure the precision of quilting and reduce excessive parameter adjustment and pattern modification .

5. drawing method to ensure the precise of pattern and facilitate the operation.

6.  Strong functions of pattern - combining and multi - span quilting to enable you to quilt different patterns in  the textile of different sizes .

7. Function of state detection and prompt to make you know the running state of the machine.



Industrial quilting machine for mattresses Technical data:



Industrial quilting machine for mattresses
Machine code	CS110	CS110	CS128	CS128
Function Spec	2 Needle row (110 Inch)	3 Needle row (110 Inch)	2 Needle row (128 Inch)	3 Needle row (128 Inch)
Size	5200 * 1100 * 1600mm	5300 * 1200 * 1650mm	5500 * 1100 * 1600mm	5600 * 1200 * 1650mm
Weight	3500KG	3800KG	4000KG	4500KG
MAX.Needles  Quantity	220 pcs	330 pcs	256 pcs	384 pcs
Stroke	203.2mm(8")	304.8mm(12")	203.2mm(8")	30.8mm(12")
Quilting Width	2794mm	2794mm	3251mm	3251mm
Running Rate	200-500r/m	200-500r/m	200-500r/m	200-500r/m
Needle Distance	25.4mm	25.4mm	25.4mm	25.4mm
Rating Power	6.2kw	6.2kw	6.2kw	6.2kw
Voltage	380v	380v	380v	380v
Needle Model	16/19	16/19	16/19	16/19
Quilting  Thickness	≤30mm	≤30mm	≤30mm	≤30mm

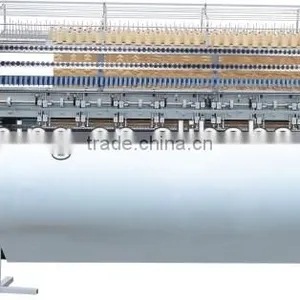

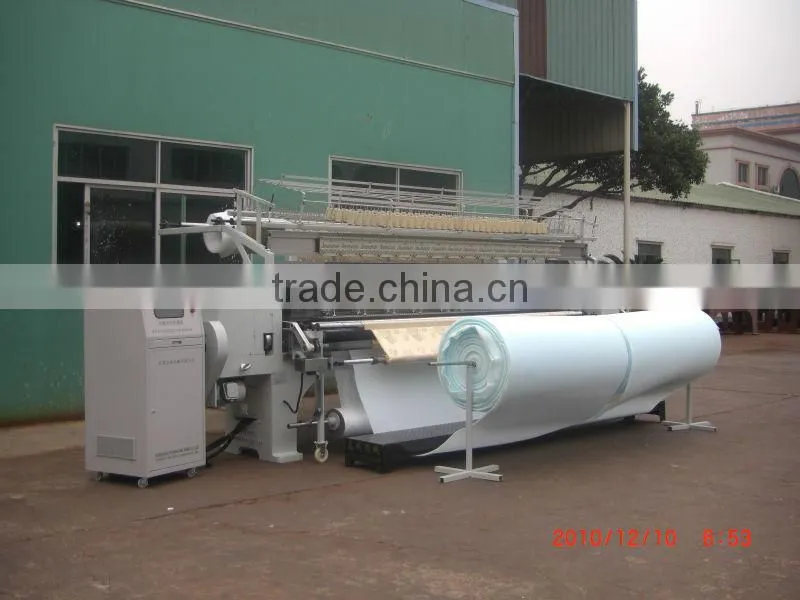

Industrial quilting machine for mattresses detail pictures

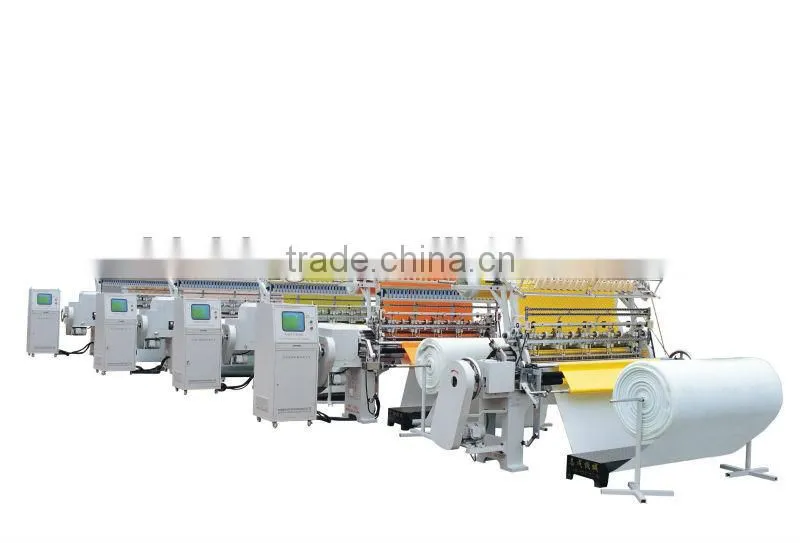

Different models for you reference



After-sale service:

1) Installation & Commissioning: The seller can provide the installation, commissioning

and training service in buyer's factory, while the buyer needs to pay for VISA application,

air ticket, accommodation, and (if necessary) interpreting fee for seller’s technician.

2)  After one year, the buyer needs to pay USD200/day/person as service charge, as well

 as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting

fee for seller’s technician.

3. Warranty:For the machine above,the seller provides one year warranty starting from the

moment the seller dispatches the machines. For the detailed guarantee period of each

part, please refer to the operation manual.Wearing parts,consumption material and the

damage incurred by the buyer's incorrect operation are out of warranty range.



About Us

Dongguan Chishing Machinery Co., Ltd. was established in 1989 and immediately secures a leading position in the mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.

At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both the shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.

Our products are sold worldwide and our sales currently account for 70% of the total Chinese quilting machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit from both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first".
