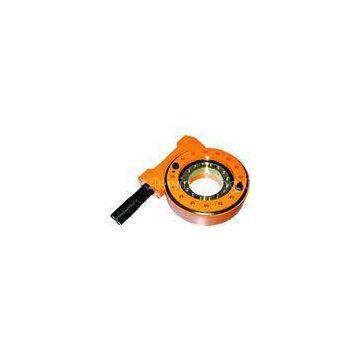

Single-Axis 9 inch Worm Gear Drive For Mobile Cranes , Internal Gear OEM ODM

Delivery Time:10-30days
Certification:ISO9001:2008

Single-Axis 9 inch Worm Gear Drive For Mobile Cranes , Internal Gear OEM ODM

Quick Detail:

9 inch single axis slewing drive 9 in slewing drive for solar tracker and engineering machinery. AX9 Enclosed housing slewing drive, A9 Open housing slewing drive. With many years of manufacturing and export experience in bearings field, 90% of our output to Europe and the USA. ISO9001:2008 certificate approved quality OEM service.

Aoxuan 9” slewing drives are widely used in the different engineering application such as heavy loader transporters, harbor mobile crane; ship lifting, claw trucks, container lift crane, and movable gantry cranes. Mine machine, excavator, concrete machine, paper machine, as well as wind power generation system also use our slewing drive.

Description:

As we know, 9 inch single axis slewing drive mainly consists of a slewing bearing, a worm gear or spur gear, housing and a hydraulic or an electric motor.

Aoxuan slewing drive delivers dependable operation with the rugged design ensuring many years of low-maintenance operation and feature of easier installation and compact space etc. With many years of manufacturing and export experience in bearings field, 90% of our output to Europe and the USA, ISO9001:2008 certificate approved quality, OEM accepted.

Slew drive is divided into worm gear driven type and spur gear driven type, the worm gear series slew drive contains 9 sizes from 3 inch to 25 inch, AX3(3inch), AX5(5inch), AX7(7inch), AX9 (9inch), AX12(12inch), AX14(14inch), AX17(17inch), AX21 (21inch), AX25 (25inch), and widely used for solar tracking system, vehicle and crane steering systems, man lift systems for boom and basket rotation, light crane systems, rotation of attachments such as excavators, grabs and fork lifts, handling equipment (automation systems), loading and unloading devices, positioning systems / turntables.

Applications:

Aoxuan Slewing drives are widely used not only in excavators, tower cranes, mobile cranes and crawler cranes, but in other construction machines, engineering machines, harbor machines, metallurgical machines, light industrial machines, military equipments and wind generators, solar PV utilities etc.

Specifications:

Data  Model	Output Torque	Tilting Moment Torque	Holding Torque	Static Axial Rating	Static Radial Rating	Dynamic Axial Rating	Dynamic Axial Rating	Gear Ratio	Accurace	Self Locking Gears	Weight (KG)
AX9	6.5 kN.m	33.9 kN.m	38.7kN.m	338 kN	135 kN	81 kN	71 kN	61:1	≦0.17°	Yes	49
4794lbf.ft	25x103lbf.ft	29x103lbf.ft	76x103lbf	30x103 lbf	18x103 lbf	16x103 lbf
A9	6.5 kN.m	33.9 kN.m	38.7kN.m	338 kN	135 kN	81 kN	71 kN	61:1	≦0.17°	Yes	37
4794lbf.ft	25x103lbf.ft
