Environmental Friendly Calcium Sulphate Raised Floor Sound Insulation

Delivery Time:10 Working Days within 5 Containers
Certification:ISO/CE/SGS/PSB

Environmental Friendly Calcium Sulphate Raised Floor Sound Insulation​

Description:

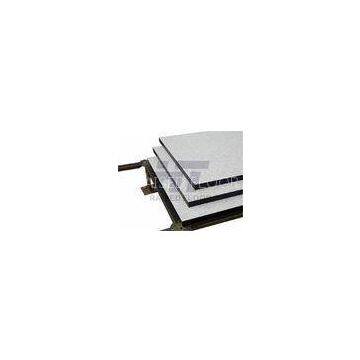

The Recyclable Flooring Environmentally Friendly Calcium Sulphate Raised Floor is a sandwich construction of galvanized steel sheets to the bottom and top enclosing a recyclable environmentally friendly calcium sulphate core. The edge is then wrapped with a PVC trim to create a fully encapsulated 600mm x 600mm panel. This product is ideally suited to allow a huge range of finished products to be bonded to it, these include carpet, vinyl, HPL, wood and stones.

Application

Plant rooms, server rooms, banks, telecommunication centers, smart offices and computer rooms.

Characteristics

Recoverable and environmental protection Good loading capacity and conductivity High dimension accuracy and good interchangeability Good sealing and water-proof Fire–proof , antisepsis and sound insulation

Our Advantage

Calcium sulphate core manufacturer. The rate of CaSO4 1/2H2O and High strength kraft paper can be up to 85%, strength run ahead of the market

Custom-made products, we can meet your special requirement

Accessories

More designs and colors for your options and projects, pls kindly contact our sales

Technical Paramter

Loading Capacity In accordance with PSA MOB PF2/SPU
Testing Item	Heavy Grade	Extra Heavy Grade	Extra Heavy Grade	Description
Concentrated Load	4.45KN	5.56KN	6.68KN	24 hours' loaded onto the floor system supported by pedestal FFH=80mm, deflection<2.50mm
Uniform Load	22.22KN/㎡	27.78KN/㎡	680KN/㎡	24 hours' loaded onto the floor system supported by pedestal FFH=80mm, deflection<2.50mm
Ultimate Load	14.50KN, didn't collapse	18.36KN, didn't collapse	22.17KN, didn't collapse	5 minutes' loaded onto the floor system supported by pedestal FFH=80mm, safety factor>3,without collapse.
Impact Load	68KG, didn't collapse	68KG, didn't collapse	79KG, didn't collapse	A steel indentor weighing 4.5kg with a 50mm high to anywhere of the floor system supported by pedestal FFH=800mm, without collapse.

Installation Effect

Ecology

Due to this environment friendly production process and the use of ecological materials the HT panel will be recycable from 90% to 97% at the end of its life - a very important economical aspect nowadays.

High Degree of Flexibility

Standard panel thickness between 24mm to 40mm as well as special material mixtures are available to allow any specific load bearing requirement.

Acoustical characteristics

The material structure, design features and high production precision of the access raised floor panels provide excellent acoustic values. The extremely good walk-on properties offer a high degree of comfort and create a perfect working ambience.

Electrostatic characteristics

Electrostatic charges are dissipated, regardless of panel material, by the inherent design features. The ohmic resistance defined in this way permits compliance with earth continuity in accordance with VDE 0100 by the use of suitable floor covering.

Air Ventilation

Either plastic or metal ventilation elements can be fitted into the HT calcium sulphate panel or steel ventilation panels can be installed instead of HT panels to follow the requirements of the under floor air conditioning system.

Fire resistance

The steadily increasing demand of using incombustible materials to reduce the fire load in the buildings makes the HT Calcium Sulphate Access Floor a most valuable solution offering both functional as well as safety advantages.

Structure Performance
Bearing Load Capacity	In accordance with PSA	In accordance with PSA MOB,	In accordance with PSA MOB,
Fire Resistance	Class0 & Class1(BS476) A1 noncombustuble(EN13501)
Soundproofing	28-51 dB(With floor covering) 14-70dB(Without floor covering)
	longitudinal sound reduction, footfall sound, improvement in footfall,improvement in impact sound
