Gray Color Pin Type Composite Polymer Insulator 36KV with 10KN
Negotiable
1 (Min.Order)
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
12KV Pin Insulator Polymer Composite Insulators with Rated Mechanical Tension Load 12.5KN
-
Rated Voltage 24KV High Voltage Insulator Pin Type With 12.5KN Load
-
36KV CE Pin Composite Insulators with Creepage Distance 960mm
-
Gray Color Pin Composite Polymer Insulator for High Voltage Power Line 40.5KV
-
24KV Power Station Composite Polymer Line Post Insulator with Rated Mechanical Tension Load 8KN
-
Line Post Silicone Rubber Insulator In Hydrophobicity , Rubber Electrical Insulator
Product Details
| Brand Name | YIXIN | Place of Origin | China | |
| Model Number | FPQ-36/10M16-376 |
Product Description
Certification:ISO9001
Â

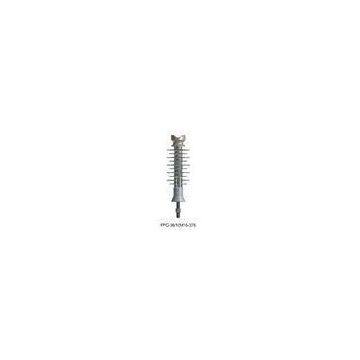

36KV Gray Color Pin Type Composite Polymer Insulator with 10KN
Â
Â
Product Structure:
1) The silicon rubber rain shed, designed according to the aerodynamics principle, use the whole-moulding method, to make sure the validity of total creepage distance under every climate and nasty conditions, as well as improved the pollution discharge of the insulators.
2) The fiber rod uses the ECR high-temperature and acid-proof material.
3) The end fitting connection adopts the zinc cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.
Advantage:
1)composite insulator with competive price and good quality.
2)Hop dip galvanized cast SAE1045 steel for metal fittings.
3)silicone rubber for sheds
4)Glass-fiber reinforced
Specifications:
| Spec&Type | Rated Voltage (KV) | Rated Mechanical Tensionload | Strcucture Height (mm) | Min Arc Distance (mm) | Min Normal Creepage Distance (mm) | Full Wave Lightning Impulse Withstand Voltage (KV) | Min Power Frequency wet Withstand Voltage |
| FPQ-36/10M16-376 | 36 | 10 | 376 | 260 | 900 | 170 | 70 |
