Rated Voltage 24KV High Voltage Insulator Pin Type With 12.5KN Load

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YIXIN		Place of Origin	China
Model Number	FPQ-24.5T20-260

Product Description

Delivery Time:According to order quantity
Certification:ISO9001

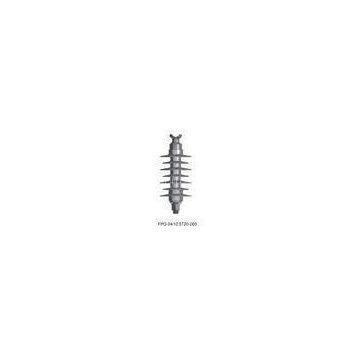

Rated Voltage 24KV Composite Polymer Insulator Pin Type with 12.5KN Load

Description:

1) The silicon rubber rain shed, designed according to the aerodynamics principle, use the whole-moulding method, to make sure the validity of total creepage distance under every climate and nasty conditions, as well as improved the pollution discharge of the insulators.

2) The fiber rod uses the ECR high-temperature and acid-proof material.

3) The end fitting connection adopts the zinc cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.

Product Structure:

The design of shed adopted unique aerodynamice principle. The shed and sheath adopted the whole moulding technique. Sheath thicknew accord with the IEC international standard. Adopt ERC high-temperature fortified acid-proof model core rod. The end seal adopted tie high temperature sulfuration high pressure seal technique, to achieve to the aim of three-protecttion, to ensure the end seal of metal fitting is reliable performance. Adopt international advanced aompaction joint technique for metal fitting connection. Excellent original material manifacture of products. Whichthehydrophobicity can reach to HC1 level. The unique notch design of metal fitting& same thickness of notch, prevent top end discharge. The galvanizing coat of metal fitting adopt the technique of rare earth aluminum hot galvanizing, to avoid the zine continue dropout during compaction joint.

Specifications:

Spec&Type	Rated Voltage (KV)	Rated Mechanical Tensionload	Strcucture Height (mm)	Min Arc Distance (mm)	Min Normal Creepage Distance (mm)	Full Wave Lightning Impulse Withstand Voltage (KV)	Min Power Frequency wet Withstand Voltage
FPQ-12/12.5T20-210	12	12.5	210	146	440	75	42

Condition Of Use

1. Ambient Temperature: -40oC to +40oC

2. Altitude: do not exceed 1000m; (1000m and above can be amend base on GB311.1-1997)

3. Frequency: do not exceed 100Hz

4. Mechanical Load: do not exceed the rated value of each product

FAQ:

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?
Glad to say that there is planning department, technical department and mould tooling center in
our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.

C. Would you offer free sample?
Samples are freely provided and shipping costs is paid on your end usually.

D What's your guaranty time?
At least 2 years and depend the product

E What's your payment term?
T/T, L/C; other terms is negotiable after further check.
