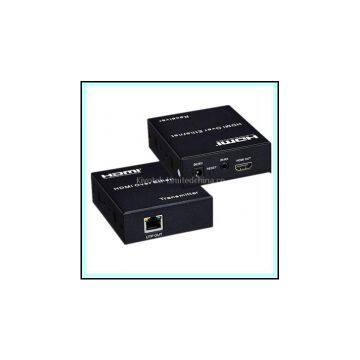

HDMI Extender 120m over single CAT5e6/7,with IR, support 1:N mode

HDMI Extender 120m over single CAT5e6/7,with IR, support 1:N mode－KVT939-120

HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high

resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable.

With the advantage of TCP/IP standard，you can extend your HD video to multiple displays by

using an Ethernet Switch.

FEATURES

-Following TCP/IP standard.

-Support HDMI1.3 protocol.

-HDCP1.1 & 1.2 protocol compliant

-Support point-to-point mode, one point-to-many mode and cascade connection mode.

-Support IR extender function allows IR remote control of Source devices from remote viewing,

-IR remote control 38kHz;NEC

-location by sending IR commands received in the vicinity of the Display back to the Source devices

-HDTV Resolutions：480p,576p,720p,1080p

-Audio Sample rate:32kHz,44.1kHz,48kHz

-Power adapter Input：100V-240V(50-60Hz)   Output:5V/1A

-Power consumption HDMI Sender:3W    HDMI receiver:3W

-Size(L-W-H) 92x79x20mm

-Weight 240g x 2

PACKAGE CONTENTS

1)  Main unit No. 1 Sender , Main unit No. 2 Receiver

2)  Two pieces of 5V DC Power Supply.

3)  one piece of IR transmitter and one piece of IR receiver

4)  User’s Manual
