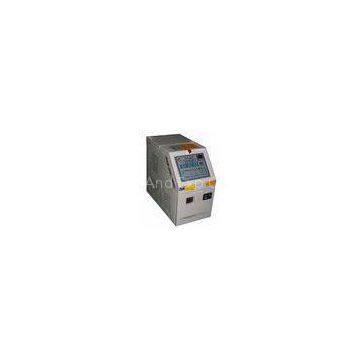

High Temperature Circulation Process Water Temperature Controller for Rubber and Plastic, Wood lathe

No.

Part

Specification

Data

1

model

AEWH-50

2

power supply

3N-380-50HZ

3

Hot medium

water

4

control mode

PC board Self - optimized microprocessor

5

accuracy of temp. control

PID±1℃

6

Max. temperature

150℃

7

Min. temperature

25℃

8

heating power

36KW(adjustable)

9

heat exchange area

0.1M2

10

Pump

model

RGP-50-180

power

3.75KW

lift

30M

flow

250L/min

11

heating method

Direct heating(Indirect cooling)

12

Pipeline

hot medium inlet/outlet

DN32(adjustable)

cooling water inlet/outlet

DN15(adjustable)

drain oil port

DN15(adjustable)

13

Temp. Controller

model

P6100(WEST)

modulating action

Dual PID control of heating & cooling

Temp. interaction stick

K- thermocouple

display status

Respectively display set point & real point

output select

SSR output

14

Frame Size

L*W*H(mm)

115
