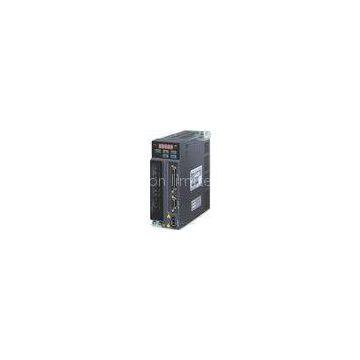

AC 220V 100W Servo Motor Driver With Three Phase / Single Phase CE for speed control

Delivery Time:3-14 days on payment
Certification:CE, 3C

High Precision Servo Motor Driver With 3 Phase Single Phase HSD5 220V

AC 220V 3 phase / Single phase PMSM servo driver Much lower cost than Delta ASDA-B2 series servo kit, but equal quality and feature High-resolution encoder with 17-bit(160000ppr) for standard version Power range: 100W~3.0KW Outstanding response characteristics: frequency response up to 550KHz and settling time below 1ms, 10ms acceleration time: -3000rpm to 3000rpm, high speed input command: up to 4Mpps

Description:

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, HNC Automation is pleased to announce that the new high-performance and cost-effective HSD5 series servo drives and motors has launched into the market.

High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

Satisfy High Precision Positioning Requirements

Support pulse input (up to 4Mbps) and analog voltage two kinds of command. Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command). There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.

Offer Easy-To-Install Solution for Simple Start-Up

Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently. HSD Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly. Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications

Reduce Maintenance and Wiring Cost for Versatile Operation

Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories The control circuit and main power circuit is separated, safety is increased and maintenance is much easier 400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost. Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor

Applications:

HSD5 series is general servo drive for all the industries. Including CNC machine tools, textile machine, printing machine, packaging machine, electronic machines, and all other industries.

Specifications:

Model	Description
HSD5-0R1	100W
HSD5-0R2	200W
HSD5-0R4	400W
HSD5-0R7	750W
HSD5-1R0	1000W
HSD5-1R5	1500W
HSD5-2R0	2000W
HSD5-3R0	3000W

Competitive Advantage:

High-resolution encoder with 17-bit(160000ppr) for standard version to match the high precision requirement Much lower cost than Delta ASDA-B2 series servo kit, but equal quality and feature. Outstanding response characteristics: frequency response up to 550KHz and settling time below 1ms 10ms acceleration time: -3000rpm to 3000rpm Position, speed and torque control mode High speed command: up to 4Mpps Built-in with regenerative resistor (above 400W) Control circuit and main circuit are separated Power range: 200W to 3KW that could cover most applications
