Product Details
| Brand Name: | EUCHIPS / OEM / ODM | Place of Origin: | China | Model Number: | DIM105 |
Product Description

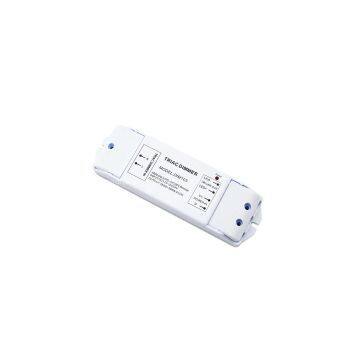

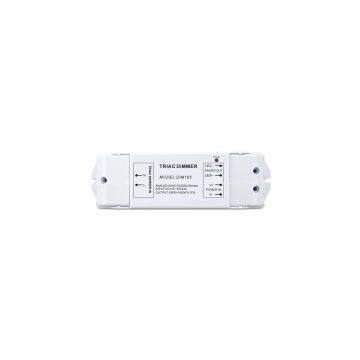

12-24VDC 15A 1 channel triac constant voltage dimmer DIM105
Summarize
Welcome to use our company’s DIM105 Triac dimmer, this dimmer is a constant voltage dimmer, output current is 15A max. Adopt the advanced microcomputer control technology, and use the advanced
electronic components. This dimmer has stable performance and high quality. It’s can be used widely at building, hotel, KTV and home.
Feature
1. Triac dimming, input dimming signal:AC40V~220V
2. Support all the triac dimming system, such as Lutron, Clipsal,Dynalite
3. Single channel output, output current 15A max
4. The dimming curve smooth, no flicker
5. 0-100% brightness control
Technical Parameter
Product Name: 12-24VDC 15A 1 channel triac constant voltage dimmer
Item: DIM105
Input Voltage: 12-24VDC
Dimming Voltage: 40-220VAC
Output Current: 15A max
Output Power: 12V:180W max; 24V:360W max
Work Temp.: -20~50℃
Product Size: 167(L)*52(W)*24(H) mm
Packaging Size: 175(L)*57(W)*30(H) mm
N.W.: 83.5g
G.W.: 114g
