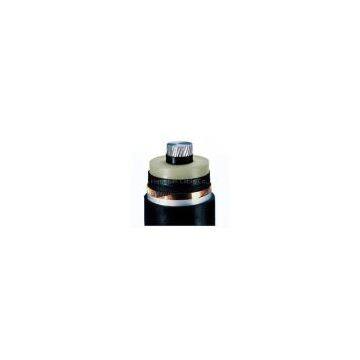

power cable - XLPE Insulated Electric Cable

XLPE Insulated Electric Cable

Jacked: PVC

Insulation Material: XLPE

Certification: ISO 9001

Place of Origin: China

Type: Medium Voltage

Model Number: YJV/YJLV

Payment & Shipping Terms:

Minimum Order Quantity: 1000m

Packaging Details: Export wooden cable drum

Delivery Time: Depending on the order quantity.

Payment Terms: T/T, L/C at sight

Supply Ability: 100,000-500,000 km/month.

Detailed Product Description

Structure: Cu conductor. Al conductor, XLPE insulation, PVC Sheath, Steel tape armored
Feature:

1> Bending radius

a> Bending radius of single core cable is 20(d+D)±5%

b> Bending radius of multi-core Cable is 15(d+D) ±5%

c> D=actual outer diameter of Cable Sample (mm)

d> d=actual diameter of the conductor(mm)

2> Installation temperature: It should be heated where ambient temperature is below 0℃Level difference of Cable installation.

3> Not restricted by the vertical level along the route.

The usual low and medium voltage grades of our XLPE Cables are 0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV.

Our XLPE Insulated cable can be manufactured according to companys specification which is equivalent to IEC 60502, IEC 60332, and IEC 60754. Some indexes are superior to above international standard IEC.

Some special XLPE Insulated cable can be manufactured according to the other standards required by customs.
