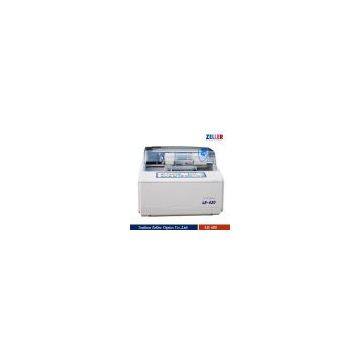

china auto lens edger

Auto lens edger LE400 equipped with PC wheel and automatically computerizes the transformation of the water spring.High quality. To be combined with excellence of pevious styles and obtains special and original design.

Features:
1.Auto-Clip System : Use of third gear pressure on the lens without damage ;
2.Automatic emendation procedure: Automatic emendation of the lens size, initial zero Proofreading during the start of grinding, obvious improvement of precision ;
3.Wheel Configuration: Standard configuration of four wheels(Resin coarse grinding wheel/ Glass coarse grinding wheel, V-flat edge / sharp edges fine grinding wheel, flat resin edge / sharp edges polished wheels ;
4.Follow-up pressure: It can increase the pressure automatically through the control of procedure during the start of the grinding which can ensure that no harm to the  lens .

Specifications :
1.Technical parameter min: Min22mm, Max100mm
2.Range of adjustable measurement:  -6.0mm~+6.0mm ( 0.05mm step )
3.Power: AC220V/110V 50Hz/60Hz, 500W
4.Main Machine Dimension: 53cm X 50cm X 40cm, 46kg
