Ceiling Mount Double Domes LED Surgery Lamps System with Camera and Monitor

FOB Price

USD $6540.00 - $6990.00 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Guangzhou, China
Payment Terms:T/T L/C Cash Other
Delivery Detail:20 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	C&H Medical	Place of Origin:	China	Model Number:	LED-510dh-3mc
Type:	Operation Illuminating Lamps

Product Description

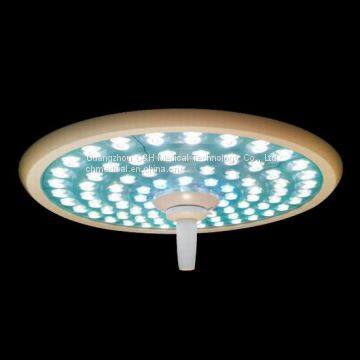

Ceiling Mount Double Domes LED Surgery Lamps System with Camera and Monitor

With innovations such as powerful LED technology, multi-lens matrixes, and adaptive lighting management, our Medical Lighting equipment, Ceiling Mount Double Satellites LED Surgery Lamp System with Camera and Monitor, gives users better working environment.

Features & Specifications:

1, OSRAM brand, made in Germany LED units;

2, MITSUBISHI brand, made in Japan, PMMA materials optical grade lens for each LED unit;

3, With PWM sonstant-current controlling technology, avoid unsteady current impacting LED units, lamps service life can be 50,000 hours;

4, Each separated LED unit fixed with one separated heat radiating units, have excellent heat dissipation;

5, 6 LED units are series connected as one group, different groups are parallel connected as one lamp panel; If any group / unit fault, others work regular;

6, Every LED unit / Radiating unit can be dismantled without effecting others;

7, Engery saving, with maximum illumination as 160,000Lux, power dissipation is no more than 45W (One Lamp Panel);

8, Gives minium heat radiation to lighting area, when servicing, temperature rising around user's head area is no more than 2°C;

9, Color Rendering Index (CRI) no less than 96%;

10, Color Temperature 3 or 4 stages adjustable;

11, Lighting spot size stages adjustable; Or continuing adjustable (Optional function);

12, Illumination stages adjustable and continuing adjustable;

13, Turn-Off operating protection function, avoid misoperation;

14, One button to change over shadow-less lighting for surgery operating and cool white embient lighting for endoscopy operating (Optional function);

15, Streamline structure lamp satellites, to reduce effect for air flow, meets clean room air flow requirements;

16, Knock-Down handles, easy for sterilizing;

Lamp Satelltes Size: Φ700mm+Φ700mm

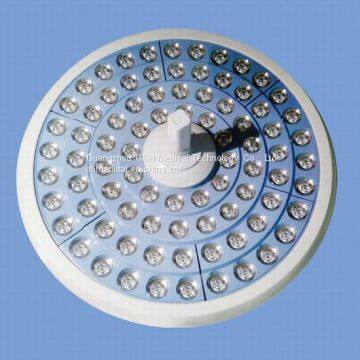

Single Lamp Panel LED Units Qty.: 84

Made in Germany ceiling system and spring arms

Main Parameters (Single Satellite Lamp):

Optical Parameter	Ec	≥160,000Lux
	CRI	≥96
	R9	≥93
	Color Temperature	3900K / 4200K / 4500K Adjustable
	D10	180mm / 250mm Optional or 180mm~250mm Adjustable
	Temperature Rise	≤2℃
	L1 + L2	≥1200mm
Electrical Parameter	Electricity	AC100~240V, 50/60Hz
	Input Power	210VA
	Power Dissipation	≤45W
	Radiant Emittance	≤220 W/m²
Mechanical Parameter	Arm Horizontal Rotate	360°
	Balancer Horizontal Rotate	360°
	Balancer Vertical Rotate	80°
	Light Satellite Vertical Rotate	180°

Optional Parts & Functions:

Camera in one lamp panel central handle;

Camera with separated arm;

4.3'' FHD Touch Screen control panel (display of camera);

Professional monitor with separated arm;
