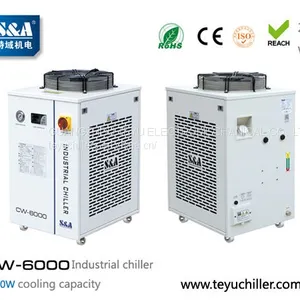

S&A water chiller CW-6000 with 3KW cooling capacity and environmental refrigerant

S&A water chiller CW-6000 with 3KW cooling capacity and environmental refrigerant

CW-6000 chillers are producing by S&A company.

S&A water chiller CW-6000 has 3000W cooling capacity with ±0.5℃ stability, water filter installed and r410a refrigerant loaded. S&A has complete material purchasing ecosystem and independent R&D on sheet metal, evaporator, condenser and cores parts of chiller. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability. S&A chiller has excellent laboratory testing system, simulates actual working environment for chiller.

CW-6000 has 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

CW-6000 video: /Article/TheshippmentofSACW60_1.html

Water chiller parameter:

 Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a

Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L

Max. lift:10M/25M/28~53M; Max. flow: 13L/min- 70L/min

N.W: 60Kgs; G.W: 70Kgs;

Dimension : 67 X 47 X 89 cm  (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)

About S&A Brand

S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 18,000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages:1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty

2.±0.1℃ high precision temperature control, stable cooling performance,support ModBus-485 communication;

3. Establish logistic warehouses at USA and Europe;

Manufacturing Advantages:1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2. Anual ouput 60,000 units,product exports rate above 60%；

3. Standard bulk production,standard parts rate up to 80% ；

4. With excellent laboratory testing system, simulates actual working environment for chiller.
