Product Details
Brand Name: | DACHENG | Place of Origin: | China | Model Number: | DSR65 |
Product Description
Product Introduce
DSR65 Series Roots Blowers adopts the advanced technology of Japan,
its air capacity is 1.07m3/min - 3.64m3/min,
the pressure is from 9.8Kpa to 58.8Kpa.
The main characteristics includes:small volume, light weight, strong below , noise small, steadily reliable operation. This air blower is mainly applied to such trades as water treatment, air transport, mine, vacuum packaging, aquaculture and etc. Our products export to Southeast Asia, Europe, North and South America and etc.
Product Feature
1. Air flow and pressure can be customized
2. Stable air flow and less pressure variation
3. Clean air not with oil moist
4. Construction simple and easy maintenance
5. Bearing are all lubricated by oil moist
6. Long service life
Description of Performance parameters
The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.
2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.
Type of technology | Positive displacement blowers |
Design | Positive pressure |
Air capacity | 1.07 to 3.64 m³/min |
Discharge Pressure | 9.8 to 58.8Kpa |
Medium | Air, Neutral gases |
Conveying | Oil-free |
Weight | 81kg |
Discharge Diameter | 65mm(or customized) |
Blower Structure Diagram
No. | Name | Material | Q' ty | No. | Name | Material | Q' ty |
1 | Shell | HT200 | 1 | 14 | Z sealing ring | Nitrile rubber | 1 |
2 | Impeller | HT200 | 2 | 15 | Gear | 35CrM | 2 |
3 | Drive shaft | 45Cr | 1 | 16 | Gear lock washer | Q235 | 2 |
4 | Driven shaft | 45Cr | 1 | 17 | Gear lock nut | SS400 | 2 |
5 | Drive side siding | HT200 | 1 | 18 | Gearbox | HT200 | 1 |
6 | Gear side siding | HT200 | 1 | 19 | Sleeve | 45 | 1 |
7 | Drive bearing | NSK | 2 | 20 | End cover | Q235 | 2 |
8 | Driven bearing | NSK | 2 | 21 | Pin | 45 | 1 |
9 | Sealing ring | Nitrile rubber | 2 | 22 | Plug | 35 | 1 |
10 | Sealing ring | Nitrile rubber | 2 | 23 | Oil gauge | 1 | |
11 | Bearing sleeve | 45 | 4 | 24 | Vent | 1 | |
12 | Bearing cover | HT200 | 1 | 25 | Grease nipple | C3605 | 2 |
13 | Bearing cover | HT200 | 1 | 26 | Gearbox seals | Barley paper | 2 |
Blower Accessories

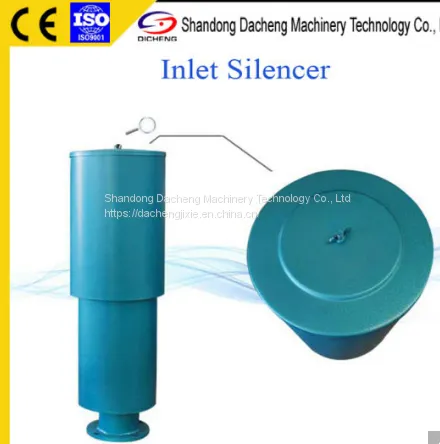

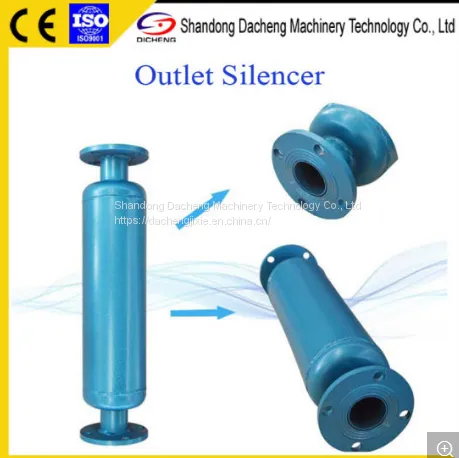

Inlet filter silencer, Discharge silencer, Anchor bolts, Baseframe, Safety valve, Check valve, Discharge pressure gauge, Flexible connections, Lubricant oil.
Roots Blower Application
Water Treatment | Aquaculture | Powder and granules transportation |
Be used in water treatment plant for water purification and sediment mixing | Be used in a variety of fish pond for oxygen supply and mixing, and also for aquariums and live fish tank | Powder or granules (such as plastic materials, etc.) can be transported by pressure or vacuum |
Incinerator | Ballast pump | Sandblast |
Air combustion and exhaust emissions | Used for chemical liquid unloading and other ballast pumps | Used as air source for blast jet |
Booster | Compost fermentation | Cereals Transportation |
Used for high-pressure exhaust to make the gas into tiny molecules | High-pressure air take into the livestock manure tank to increase contact area of livestock manure and air , also apply to sewage treatment | Cereals such as wheat are transported from the rotary pilot valve with air |
Pipe clearing | Sauna | Plating Bath |
Used to remove dirt and iron dust during pipeline replacement or overhaul | Used for the sauna to provide air bubbles, mainly used for hospitals, hotels and etc. | Use air to stir the electrolyte to keep the electrolyte circulation, and disperse the attached blister to make plating quickly, spread evenly |
Produce line drying | Car wash dry | Smoke exhaust |
Quickly remove the water or oil on the cleaned items | Dry the car after washing | Exhaust smoke quickly to reduce pollution |
Stripping from mold | Air cushion of Cut off machine | Dry air knife |
Easy to remove the finished product after stamping | Increase buoyancy, easy to move | Use the blower to blow off the tiny dust and water droplets on the circuit board |
Feed paper/cloth | Washing machine blow dry | Gas /heavy fuel injection |
Collect plastic, cloth, paper and other scrap generated after trimming | Dried bottles after washing, suitable for food industry | Provide high pressure (2000 mmAq) and sufficient air volume |
Common malfunctions and Solution
Malfunctions | Reason | Solution | ||
Blower | Can not rotate | Can rotated by hand | The motor is damaged | Repair or replace the motor |
Can rotated round by hand | The lobes are locked | Open to repair | ||
The impurity in blower | Open to clean | |||
Can rotate | Abnormal sound or vibration | Skid, v-belt is too tight or too loose | Adjust v-belt tension | |
Pulley offset | Reset pulley | |||
Pulley and belt cover friction | Adjust belt cover | |||
Bearing oil lack or aging | To replace the oil | |||
Gear oil lack or aging | To replace the oil | |||
The safe valve leakage | Adjust the safe valve | |||
Foundation insufficient strength | To strengthen the foundation strength | |||
Piping resonance | Eliminate by the silencer and support | |||
Exhaust pressure rises abruptly | See *annotated | |||
Anchor bolt is too loose | Tighten | |||
Rotor interference | Open to repair | |||
The impurity in blower | Open to clean | |||
Check valve bad | Replace | |||
Overheating | Exhaust pressure rises abruptly | See *annotated | ||
Temperature of working environment exceeds 40 ºC | Ventilated working environment | |||
Inlet silencer obstruction | Cleaning/replace filter | |||
Airflow insufficient | Pipeline leaks | Tighten the pipe connection | ||
Inlet silencer obstruction | Cleaning/replace filter | |||
The safe valve leakage | Adjust the safe valve | |||
V-belt is too loose | Adjust v-belt tension | |||
Exhaust pressure rises abruptly | See *annotated | |||
Exhaust pressure rises abruptly | Shut off the valve | Fully open the valve | ||
The water level rises | Adjust water level | |||
Inlet/outlet pipe jams | Cleaning debris | |||
Valve bad or twist reversed direction | Replace or reverse direction twist | |||
Airflow overpowered | Reduce round speed or exhaust | |||
Oil leak | Lubrication oil overmuch | Refuel to the center of oil standard |

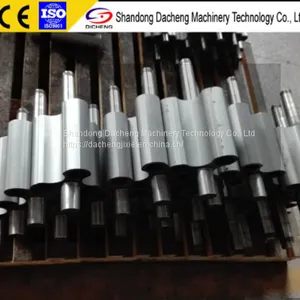

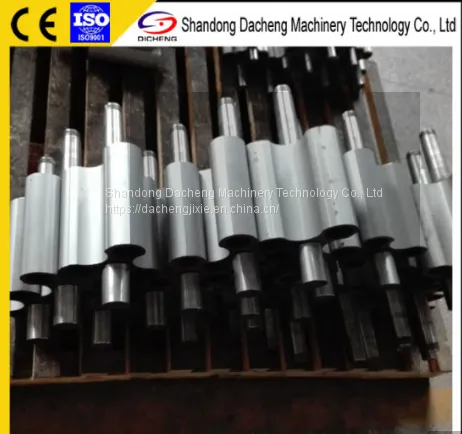

Processing Workshop
FAQ for air blower
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
D- Service life of gear is more than 60,000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6.What are your terms of payment?
1. TT 40% AS THE ADVANCE PAYMENT AND TT 60% AFTER INSPECTION BEFORE SHIPPING.
2. 100% IRREVOCABLE L/C AT STGHT.
