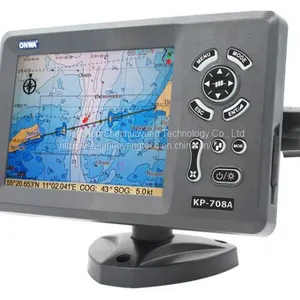

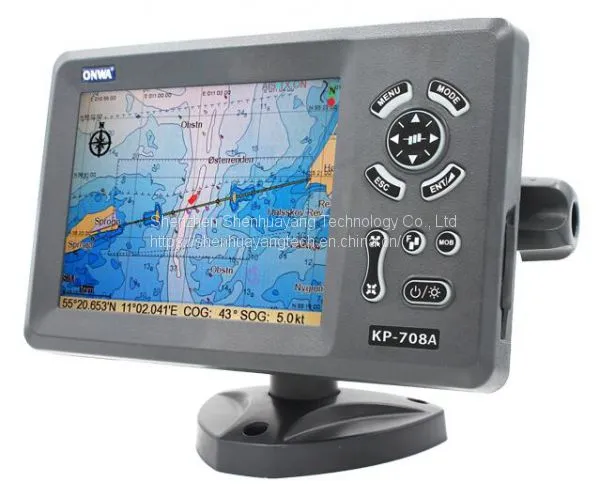

KP-708A GPS Plotter with Internal GPS Antenna and built-in Class B AIS Transponder

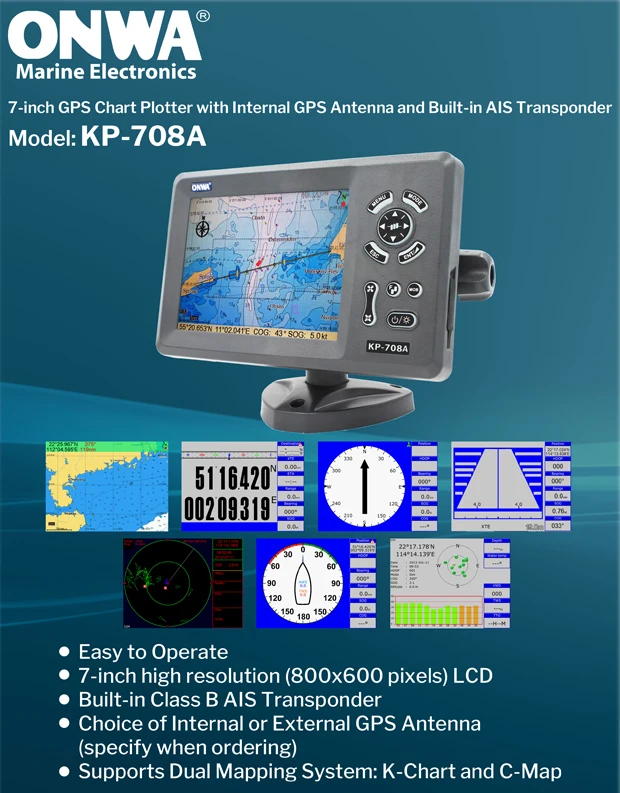

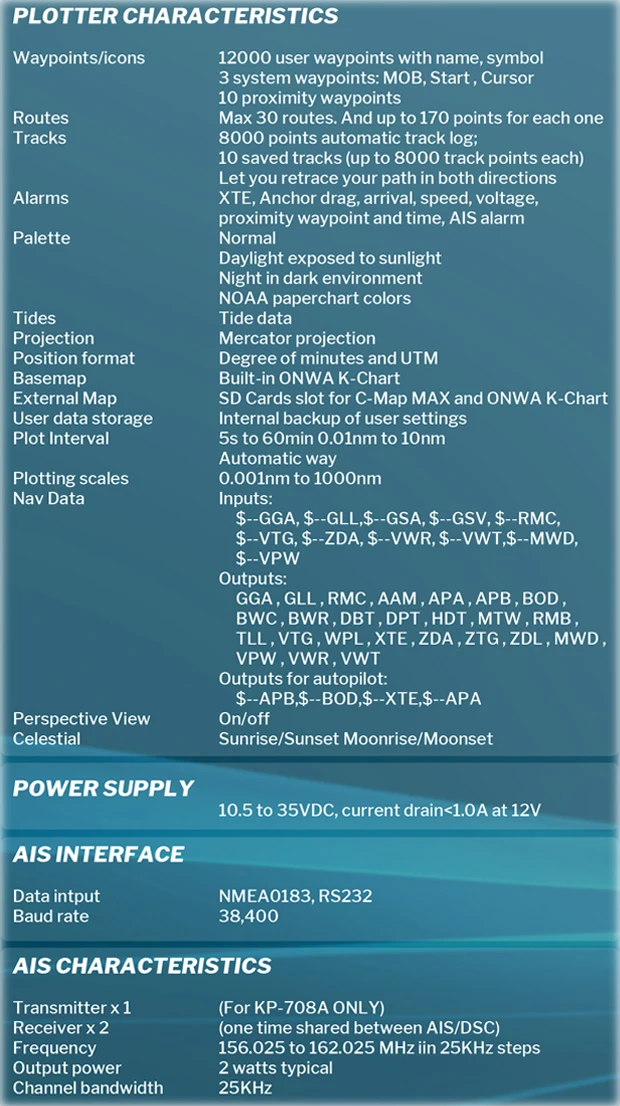

1. Waypoints/icons

12,000 user waypoints with name, symbol,
3 system waypoints: MOB,Start,cursor
10 proximity waypoints

2. Routes

30 routes waypoint up to 170 points each, plus MOB and Track Navigation or Goto Track modes

3. Tracks

8,000 point automatic track log; 10 saved track (up to 8000 track points each)let you retrace your path in both directions

4. Alarms

XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm.

5. Pallete

1.     Normal

2.     Daylight exposed to sunlight

3.     Night in dark environment

4.     NOAA paperchart colors

6. Tides

Tide data

7. Projection

Mercator projection

8. Position format

Lat/Lon

9. Basemap

Built-in Onwa K-Chart

10. External Map

SD Cards slot for C-Map MAX

11. User data storage

Internal backup of user settings, or external SD-card

12. Plot Interval

1s to 99h or 0.01 nm to 9.99nm

13. Plotting scales

0.01nm to 1,000nm

14. Nav Data

Inputs:$–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV,

$–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC,

$–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW

Outputs:

$–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL,

$–RMB,$–RMC,$–VTG, $–XTE, $–ZDA, $–DBT

$–DPT, $–WPL, $–ZDL, $–ZTG

Outputs for autopilot:

$–AAM, $–APB, $–BOD,$–VTG, $–DBT, $–DPT

15. Perspective View

On/off

16. Celestial

Sunrise/Sunset Moonrise/Moonset

AIS CHARACTERISTICS

Transmitter x 1

KP-708A only

Receiver x2

one time shared between AIS/DSC

Frequency

156.025 to 162.025 MHz in 2 5kHz steps

Output Power

2 watts typical

Channel Bandwith

25 kHz

POWER SUPPLY

10.5 to 35VDC, current drain 1.0A at 12V

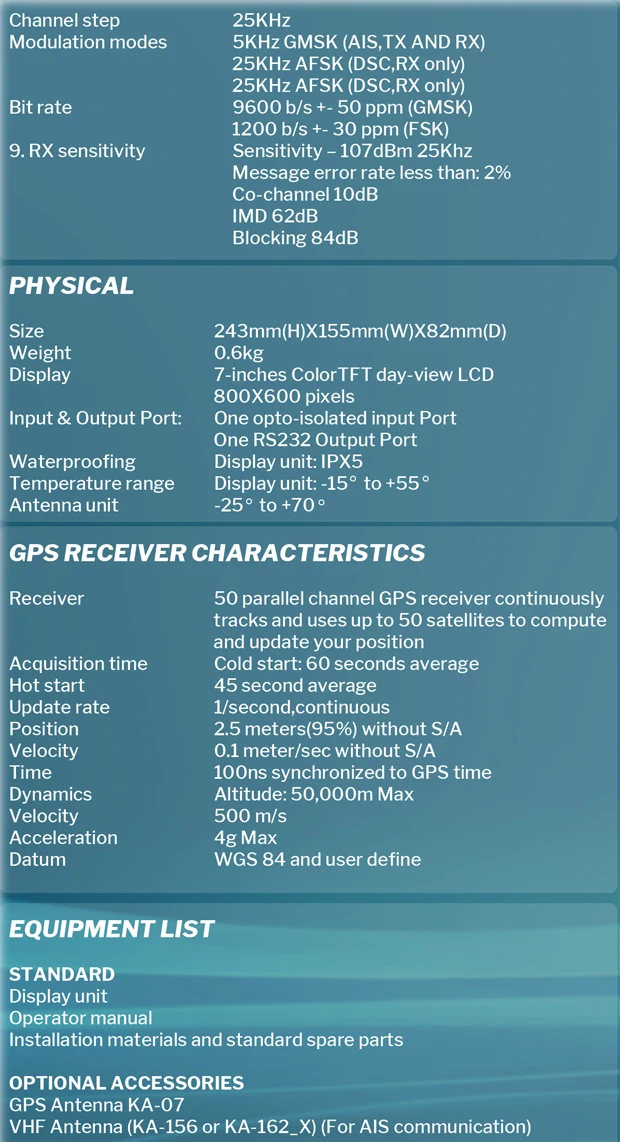

PHYSICAL

1. Size

243mm(H) X 155mm(W) X 82mm(D)

2. Weight

0.6kg

3. Display

7 inches Color TFT dayview LCD,800×600 pixels

4. Waterproofing

Display unit: IPX6
Antenna unit: IPX7

5. Temperature range

Display unit: -15℃ to +55℃ Antenna unit: -25℃ to +70℃

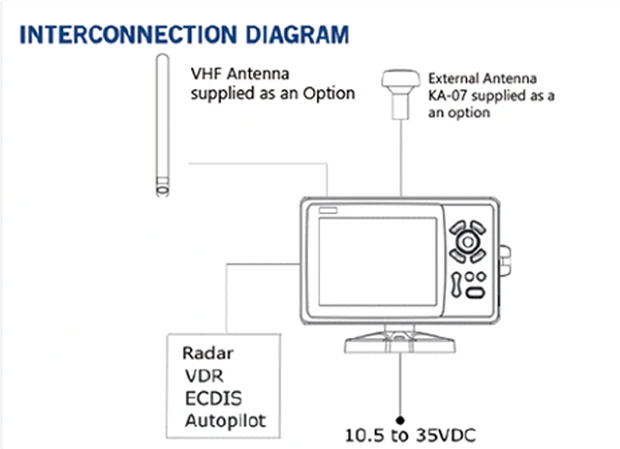

EQUIPMENT LIST

Standard

1.     Display unit

2.     Operator manual

3.     Installation materials and standard spare parts

GPS RECEIVER CHARACTERISTICS

1. Receiver

50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position

2. Acquisition times

Cold start: 27 seconds average
Warm start: 27 seconds average
Hot start: 1 second average

3. Update rate

1/second or 10/second (selectable) , continuous

4. Accuracy

Position: 2.5 meters(95%) without S/A
Velocity: 0.1 Meter/sec without S/A
Time: ±100ns synchronized to GPS time

5. Dynamics

Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max

6. Datum

WGS 84 & Others

7. Interfaces

NMEA 0183 input and output,RS232 output

8. Antenna

KA07

AIS INTERFACE

1. Data input

NMEA 0183 , RS232

2. Baud rate

38,400
