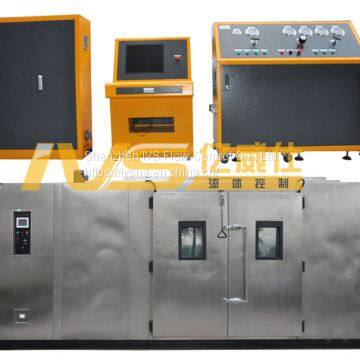

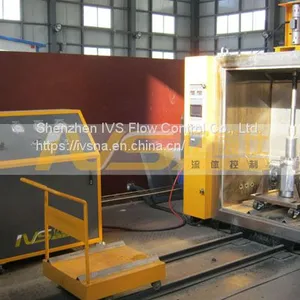

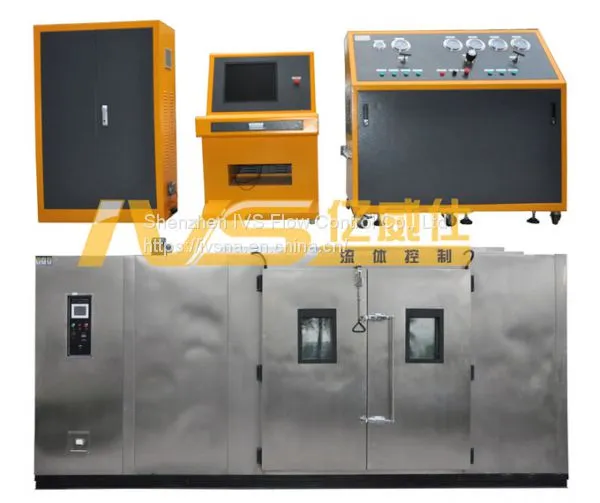

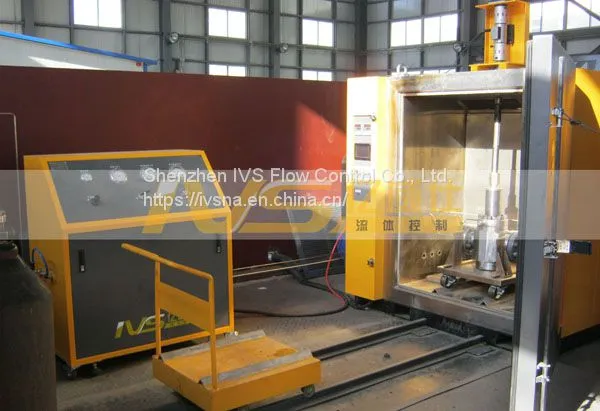

High/Low Temperature Test System for PR2 Valves

High/Low Temperature Test System for PR2 Valves

Applications:

High/Low temperature test system is mainly designed to perform high & low temperature performance test on PR2 valves and wellhead equipment.

Testing types: strength test, gas leak test, dynamic open/close cycling pressure test at maximum/minimum temperature, valve body pressure/temperature cycling test, and operation force or torque measurement.

Technical Data: Test medium: N2. Test pressure: 0~140MPa. Constant pressure range: 5%~100% FS. Testing temp.: -59℃-121℃ *(or on request). Temp. variation: ±2℃. Pressure measuring accuracy: ±0.5% FS. Pressure control precision: ±1% FS. Torque measuring range: 200Nm~1500Nm *(or on request). Drive air supply: 0.5MPa≤P≤1.0MPa. Power supply: AC380V/50Hz.

Reference Standards:

API 6A, Spec 6A     GB  /T22513-2008     GB1059289

Features & Benefits:

1.Independent and separate pressure testing, detecting and controlling to upstream and downstream of valves.
2.Electro-motor for small torque valves’ operation; hydraulic-motor for big torque valves’ operation.
3.Custom H/L temp. test chamber guarantees the needs of specimen loading and handling spaces.
4.Specimen loading method: vertical top loading & side loading.
5.Automatic test fully controlled by PC+PLC. Manual operation is on standby (pushbuttons).
6.High speed data acquisition support real-time display of pressure, time and torque, etc.
7.Test results saved automatically and allowed to print out for a further analysis.
8.Remote control & monitor of testing process is available, and unmanned testing site maximize the safety operation of operators and facilities.
9.Automatic alarm and emergency shutdown against pressure drop/leaks, over-temperature, power-down & over-load, etc.
