AluminiumFoilContainerProductionLine

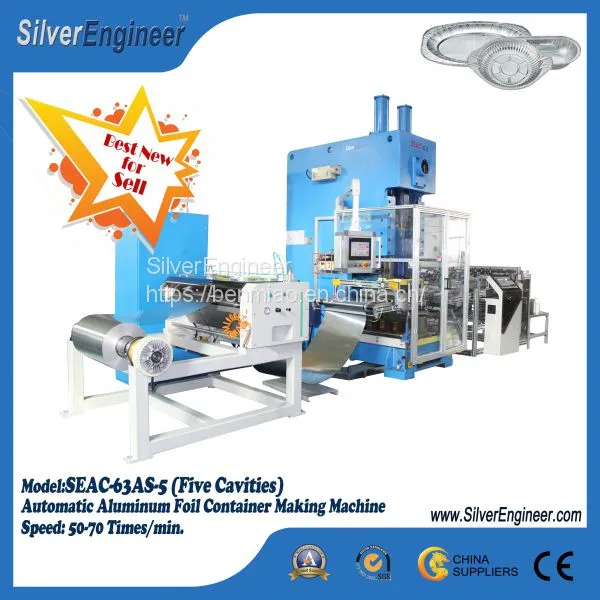

Automatic Aluminium Foil Container Production Line

Model: SEAC-63AS (Three Cavities or Four Cavities Capacity)

Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.

It fit for all common size Aluminium Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.

Specification:

1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.250mm;

Alloy: 8011,8006,3003,3005; Temper O to H24;

2.Good Japan's Inverter, PLC and 10inch Touch Screen control system;

3.Max. width of Aluminum foil: 800mm;

4.Max. diameter of Aluminum foil: 700mm;

5.Core diameter of Aluminum foil: 76mm(152mm as Optional );

6.Working speed: 40-68 times/min;

7.Total Power: 11.5kw+2kw+2.5kw+3kw;

8.Compressed air needed: 0.5- 0.8 Mpa, 0.3m3/min;

9.Install dimension: 6000*2600*3300mm;

Technical Data:

Max.mould size: 910*900*400mm ;

Slide block stroke: 180-240mm;

Slide block dimension: 360*480mm;

Automatic mould adjust unit: 0.5kw motor;

Work plate dimension: 1200*900mm;

Mould handle hole dimension: 80*80mm(Diameter*Depth);

Power: 4P, 380V or 220V,50Hz /60Hz;

Net weight: 10,500kg.

SE have the Press model: 55Ton, 63Ton, 80Ton,110Ton Common Feeder and Embossing Feeder ,Common Conveyor and Auto Stacker for your option. SEAC-63 is the perfect model to produce food containers. The container's quality accord to the International Environment Protect Standard.

The Embossing Feeder is a nice design, it's a amphibious feeder,it could embossing the foil together feeding;and you can use it only to feeding foil, only need to adjust the emboss unit,so easy !

Auto Stacker will help you upgrade company capacity level and save labour cost !

Price Terms; FOB SHANGHAI

Payment Terms; T/T / L/C

Lead Time; 45-60days

Standards Certificate; CE

Pls Keep Serious Investment Way; Three Cavities Model
