Home > Products > SMD Buzzer > 9.6*9.6*5mm 5V SMD Buzzer Electric Active Magnetic Buzzer

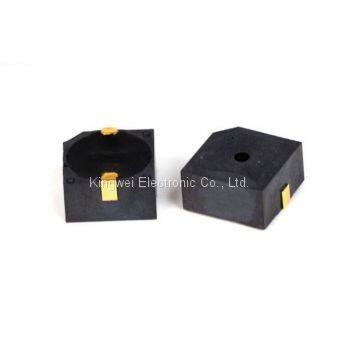

9.6*9.6*5mm 5V SMD Buzzer Electric Active Magnetic Buzzer
- 100000 Piece / Pieces per Month
- Changzhou
- T/T Credit Card PayPal Other
You May Like
Product Details
| Brand Name | Kingwei | Place of Origin | China | |
| Model Number | KSA9650C05 | Type | Buzzer |
Product Description
1ã€General
| Out-Diameter | 9.6*9.6mm |
| Height | 5.0mm |
| Weight | 1.5g |
| Operating Temperature Range | -20~+70ºC without loss of function |
| Store Temperature Range | -30~+85ºC without loss of function |
Storage Time: After being placed in a chamber with 40% R.H. at +25±3℃，may preserve for 6 months.
2ã€Electrical and Acoustic Characteristics
Test condition: 15~35℃，25%~85% RH, 860~1060mbar
| Items | Specification |
| Rated Voltage | 5V |
| Operating Voltage | 4-7V |
| Max. Rated Current | 30mA/5VDC |
| Resonant Frequency | 2700±0.3KHz |
| Min. Sound Pressure Level | 80dB/5Vp-p Square Wave/10cm |
| Tone Nature | Continuous |
| Case Material/Color | PPS/BLACK |
| Leading Pin | Tin Plated Brass (Au) |

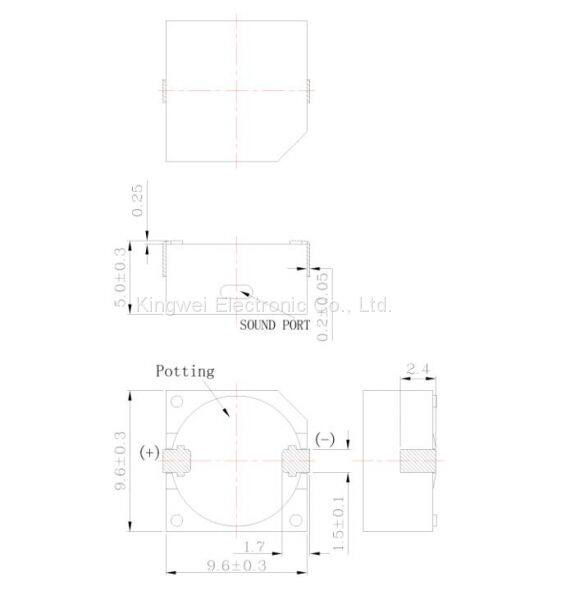

3ã€Product Overview
4ã€FAQ:
1）Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2）What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
3) Can you provide samples?
Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.
4) Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
