Bergquist K-10 replacing pcm For LED light 0.152mm thickness light amber Thermal Phase Change Material Pad PCM

FOB Price

USD $0.2 - $20 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000000 Piece / Pieces per Month
Port Hongkong
Payment Terms:T/T
Delivery Detail:5 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	ZIITEK	Place of Origin:	China	Model Number:	TIC806K
Material:	Other, pcm	Type:	Insulation Film	Application:	High Temperature
Rated Voltage:	>4000	Tensile Strength:	good

Product Description

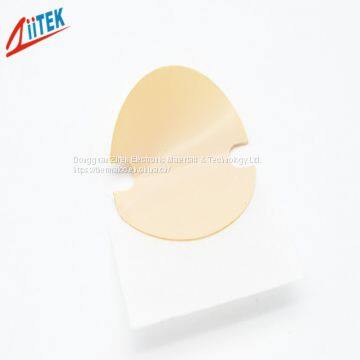

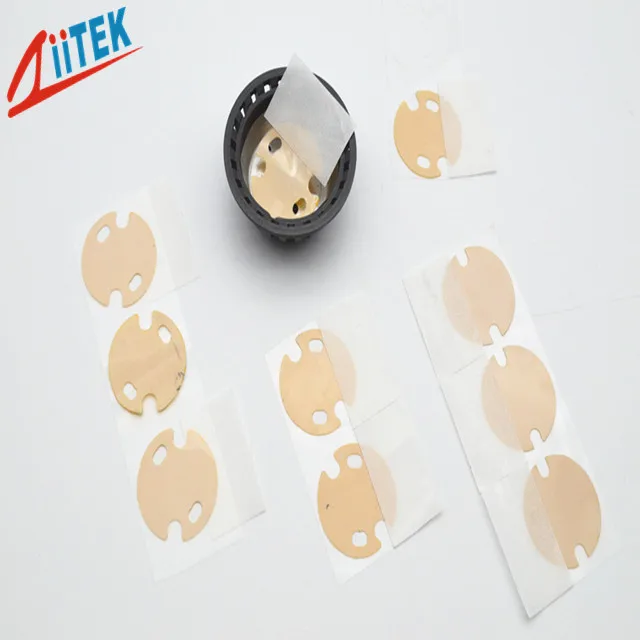

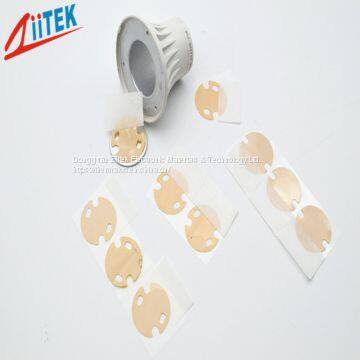

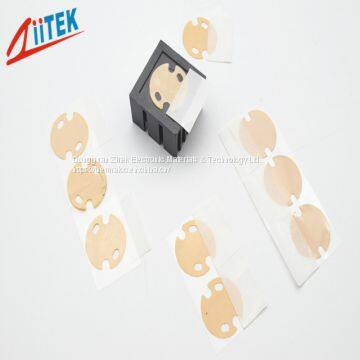

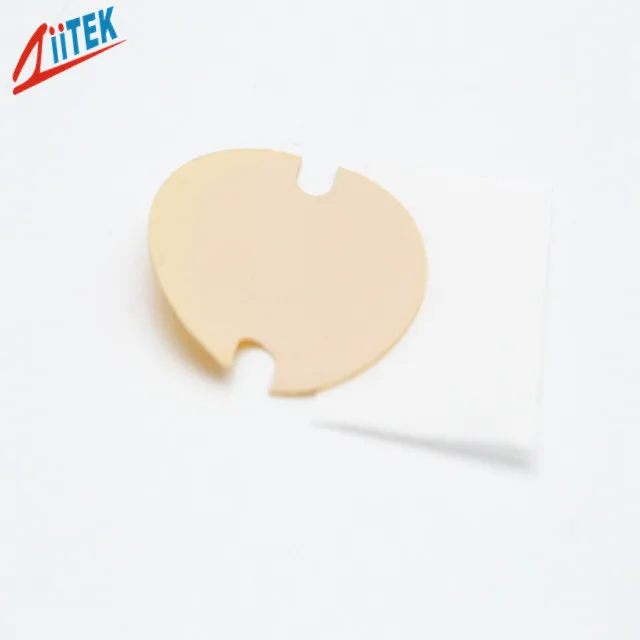

Heat Dissipation Material For Phone light amber 0.152mm thickness Thermal Phase Change Material Pad

The TIC™806K Series is low melting point thermal interface material. At 50℃, The TIC™806KSeries begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.The TIC™806K Series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

The TIC™806K Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

Features

Re-flow compatible
Cost Effective
Used where electrical isolation is not required
Low volatility – less than 1%
Easy to handle in the manufacturing environment
Flows but doesn’t run like grease
Available in custom die-cut shapes, kiss-cut on rolls

RoHS Compliant

Applications

IGBTs
COB Led
Desktop PCs
CPU

Phone
Micro processors
Chipsets
Graphitc Processing Chips
Custom ASICs
Servers
Memory Modules
Power semiconductors
Power conversion modules

Typical Properties of TIC™806K Series
Product Name	TIC™806K
Colour	Light amber
Composite Thickness	0.006" (0.152 mm)
Specific Gravity	2.0 g /cc
Heat Capacity	1 l/g-k
Tensile strength	>13.5 Kpsi
Continuous use temp	-58~266°F（-50~130℃）
phase transition temperature	50℃~60℃
Dielectric Breakdown Voltage	>6000 Vac
Tensile Strength	> 17.8 Kpsi
Dielectric constant	1.8 MHz
Volume Resistivity	3.5*1014 Ohm-meter
Thermal conductivity	1.6 W/m-K
Thermal impedance @50 psi	0.21 ℃-in2/W
